• Specifications

• Nominal voltage: 12.8V

• Nominal capacity: 200Ah

• Maximum charging current:<150A

• Recommended charging current: <75A

• Discharge protection current:350A

• Continuous discharge current:≤150A

• Operating voltage range:8.4 V-14.6 V

• Overcharge protection voltage: 14.6 V ±0.05 V

• Overdischarge protection voltage:8.4V

• Over-discharge recovery voltage：10.8V

• Protect battery temperature:60°C ± 5°C

• Life: 6000 Cycles or more

• Charging temperature: 0~45°C

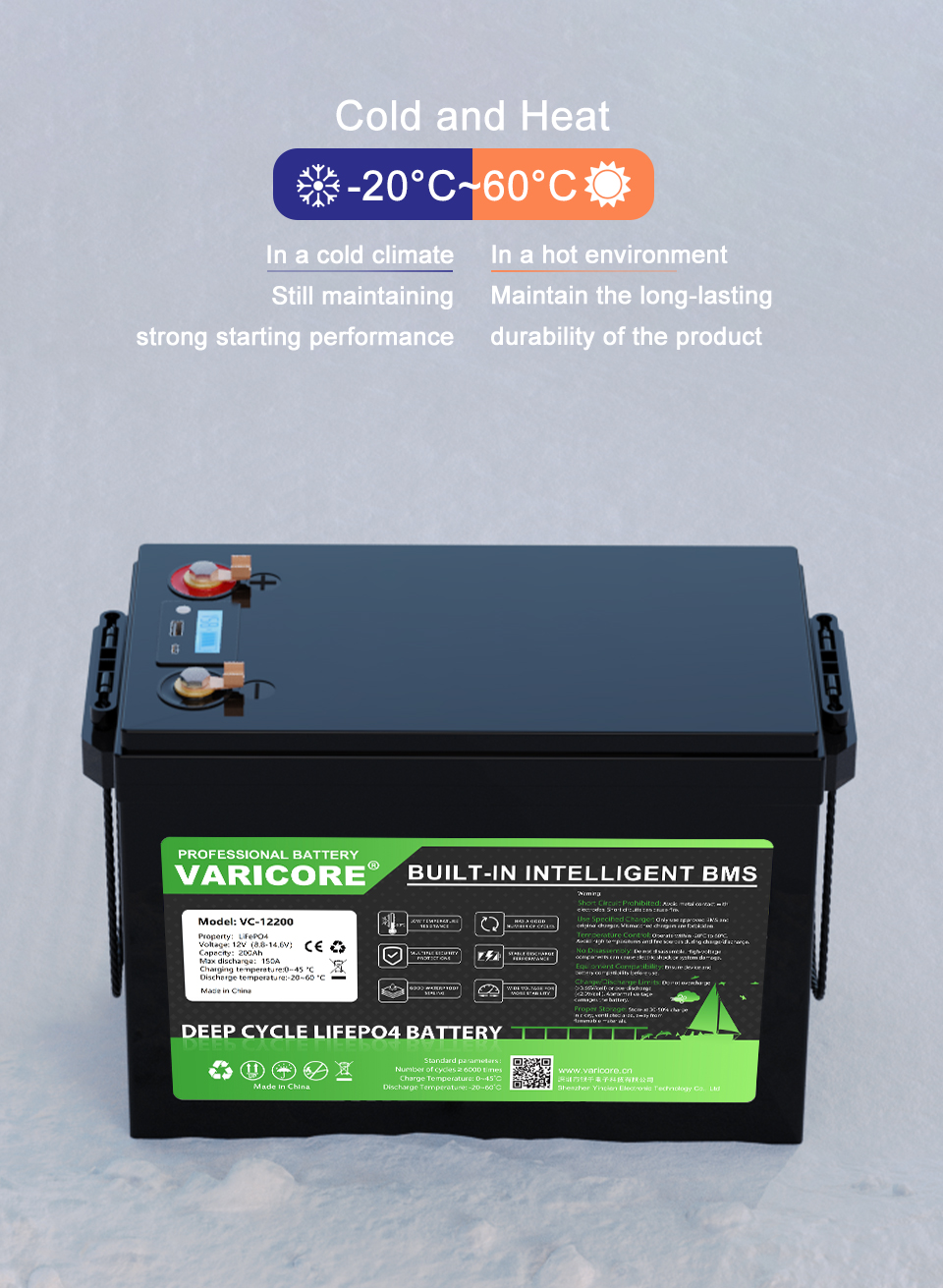

• Discharge temperature: -20~60°C

• Storage temperature: -10~65 °C

• Self-consumption current：10μA

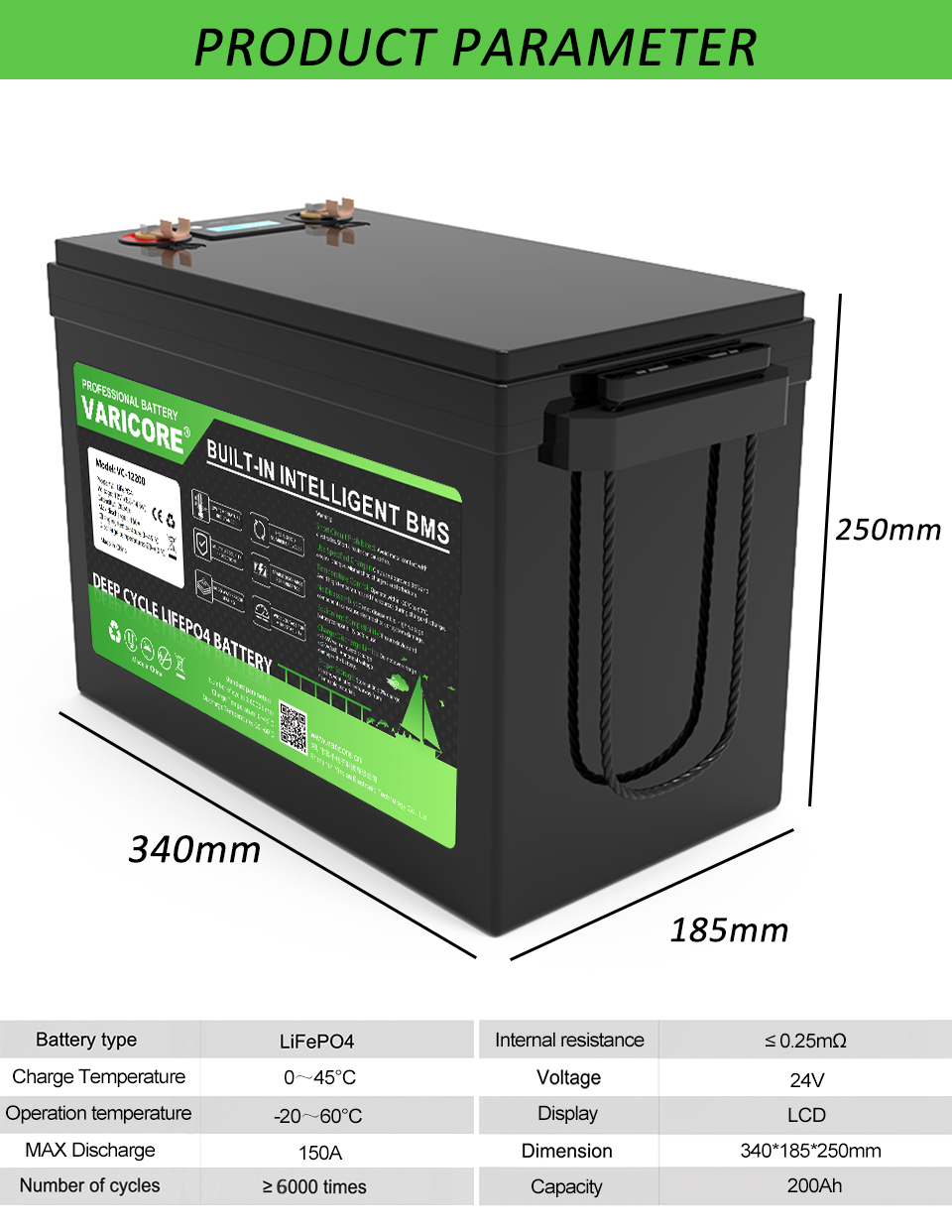

• Size(mm)/Weight(grams):

Size: Length 340mm x Width 185mm x Height 250mm

uWeight:About 20kg (including boxes)
