• Specifications

• Nominal voltage: 48V

• Nominal capacity: 100Ah

• Maximum charging current:<100A

• Recommended charging current: <50A

• Discharge protection current:250A

• Continuous discharge current:≤100A

• Operating voltage range:35.2 V-58.4 V

• Overcharge protection voltage: 58.4 V ±0.05 V

• Overdischarge protection voltage:35.2V

• Over-discharge recovery voltage：43V

• Protect battery temperature:60°C ± 5°C

• Life: 6000 Cycles or more

• Charging temperature: 0~45°C

• Discharge temperature: -20~60°C

• Storage temperature: -10~65 °C

• Self-consumption current：10μA

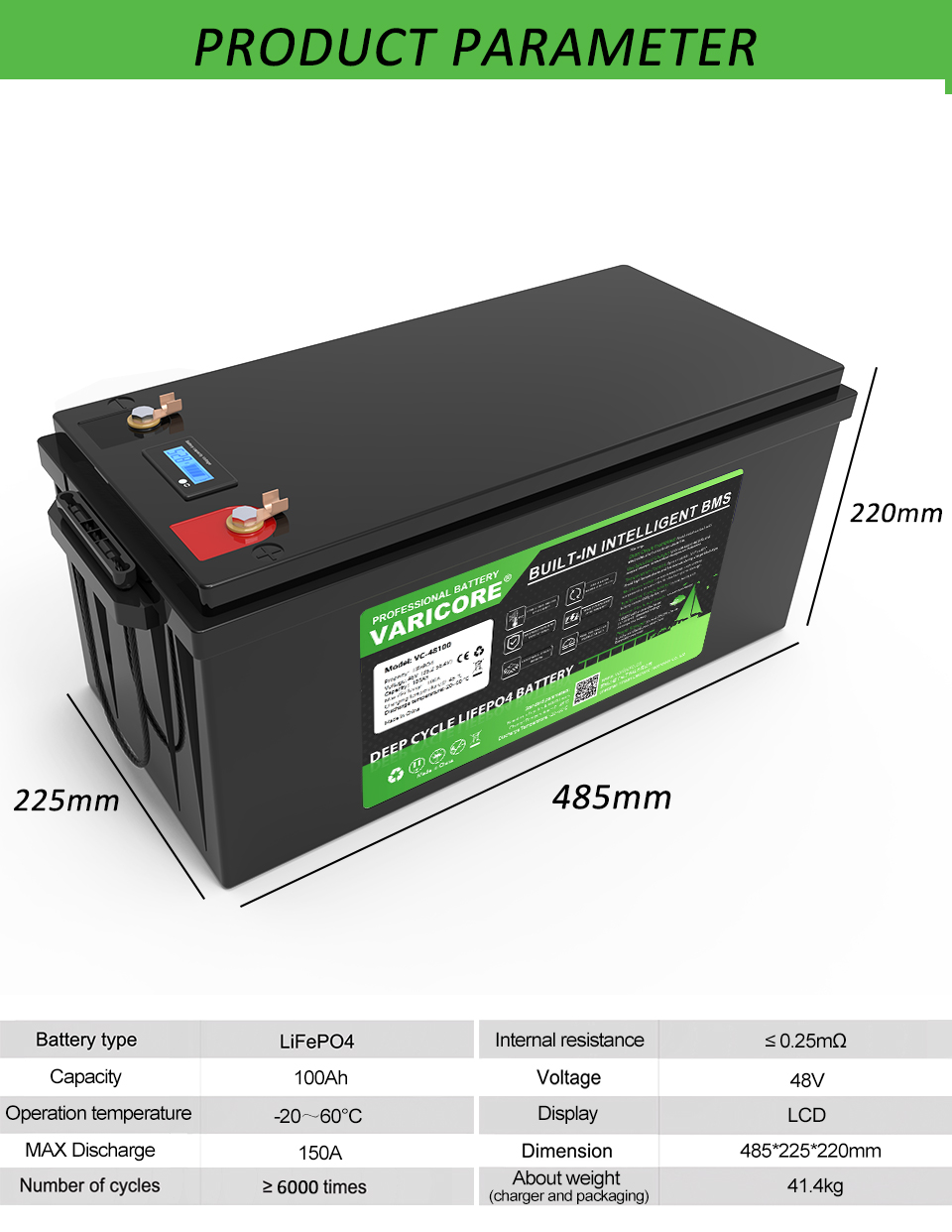

• Size(mm)/Weight(grams):

Size: Length 485mm x Width 225mm x Height 220mm

Weight:About 41kg (including boxes)
