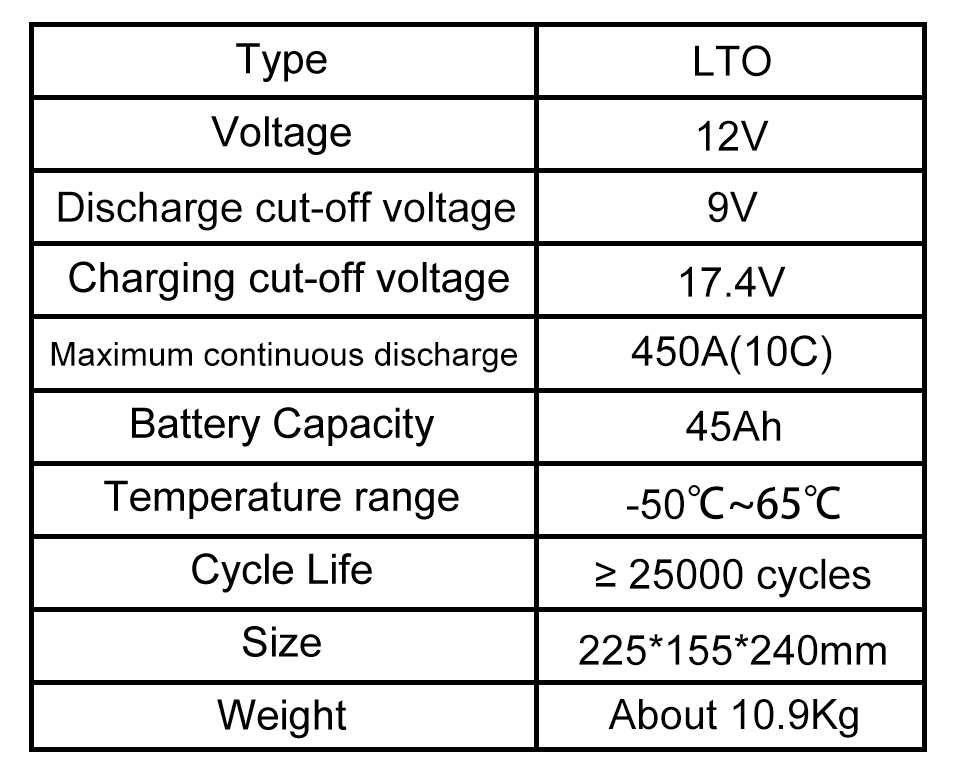

Specifications



Nominal voltage: 12V

Nominal capacity: 45Ah

Maximum charging current:<45A

Recommended charging current:

Discharge protection current:

Continuous discharge current:

Operating voltage range:9 V-17.4 V

Overcharge protection voltage: 17.4 V ±0.05 V

Overdischarge protection voltage:17.4V

Over-discharge recovery voltage：

Protect battery temperature:60°C ± 5°C

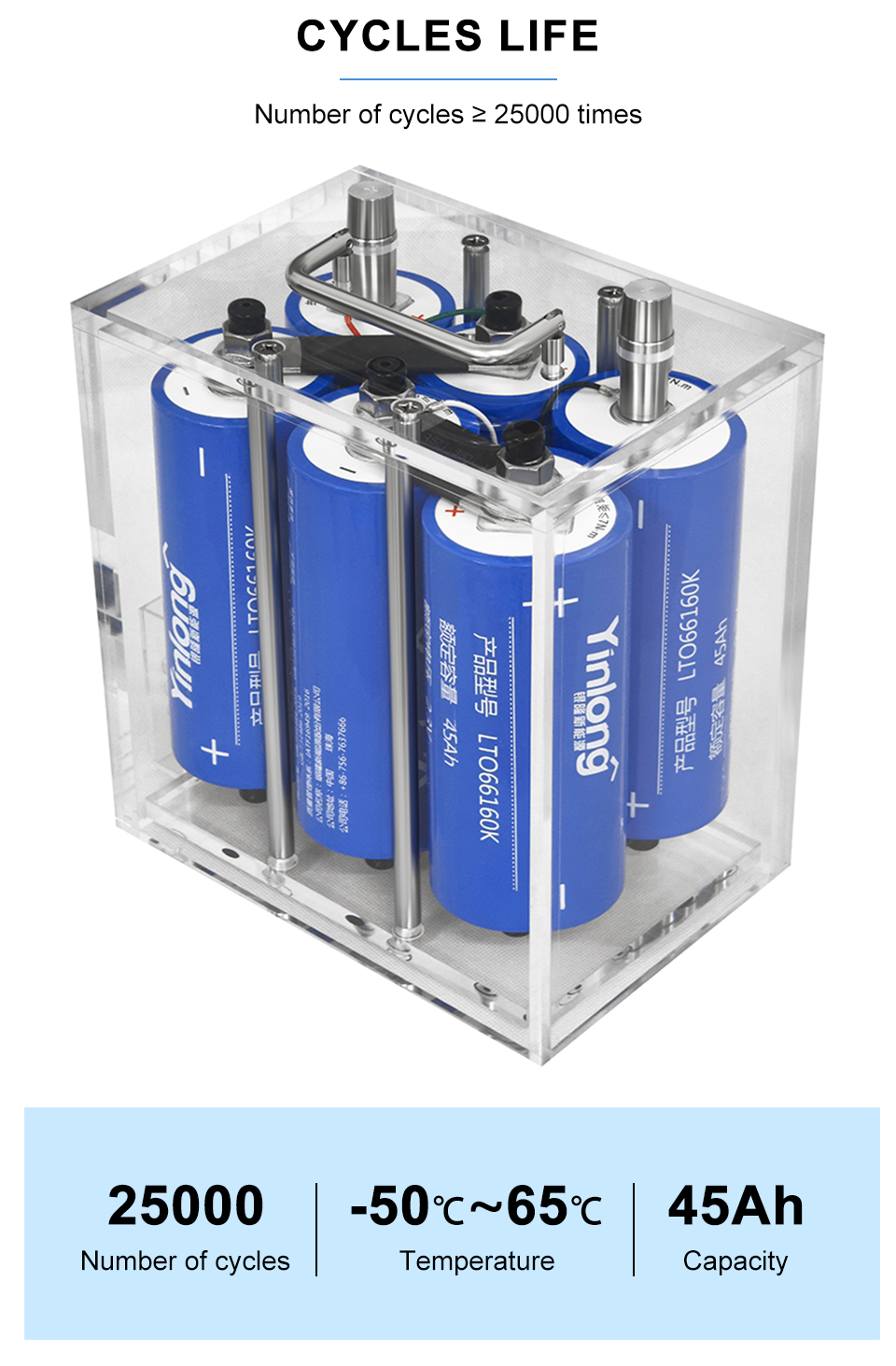

Life: 25000 Cycles or more

Charging temperature: 0~45°C

Discharge temperature: -50~60°C

Storage temperature: -50~65 °C

Self-consumption current：10μA

Application of batteries:

RV, motorcycle, solar energy, electric tower, windmill, camping, electric car, golf cart, etc.

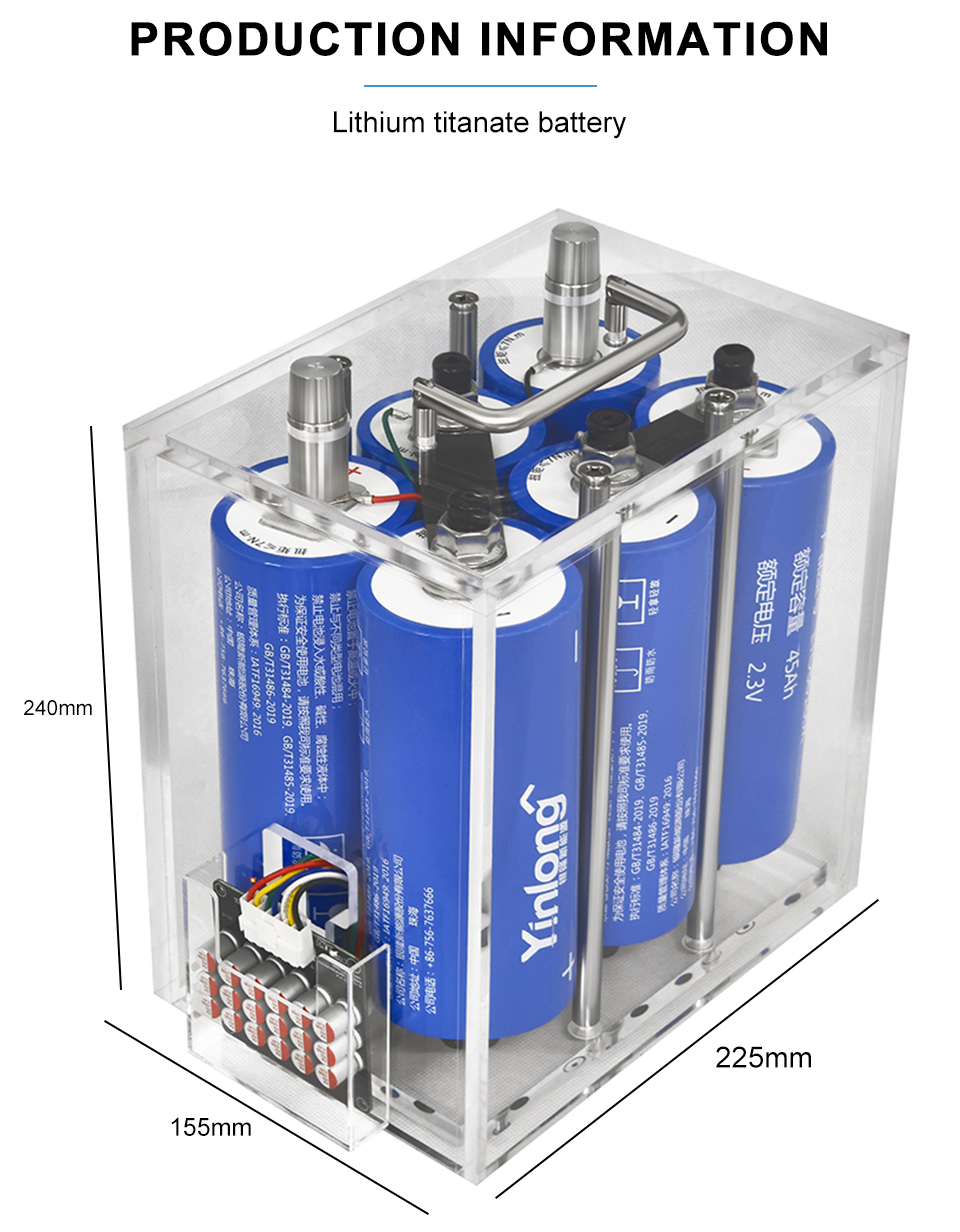

Size(mm)/Weight(grams):

Size: Length 225mm x Width 155mm x Height 240mm

Weight:About 10.9kg (including boxes)
