Specifications

 Voltage、Current and Temperature

u Nominal voltage: 12V

u Nominal capacity: 100Ah

u Maximum charging current:<100A

u Instantaneous discharge current:

u Discharge protection current:250A±100A

u Continuous discharge current:≤100A

u Operating voltage range:8.4 V-14.6 V

u Overcharge protection voltage: 14.6 V ±0.05 V

u Overdischarge protection voltage:8.4V ±0.05 V

u Over-discharge recovery voltage：2.6V

u Recovery condition: Disconnect the load or resume charging

u Short circuit protection delay time: 200-800mS

u Short circuit protection recovery: recovery after disconnecting the load

u Protect battery temperature:60°C ± 5°C

u Life: 6000 Cycles or more

u Charging temperature: 0~45°C

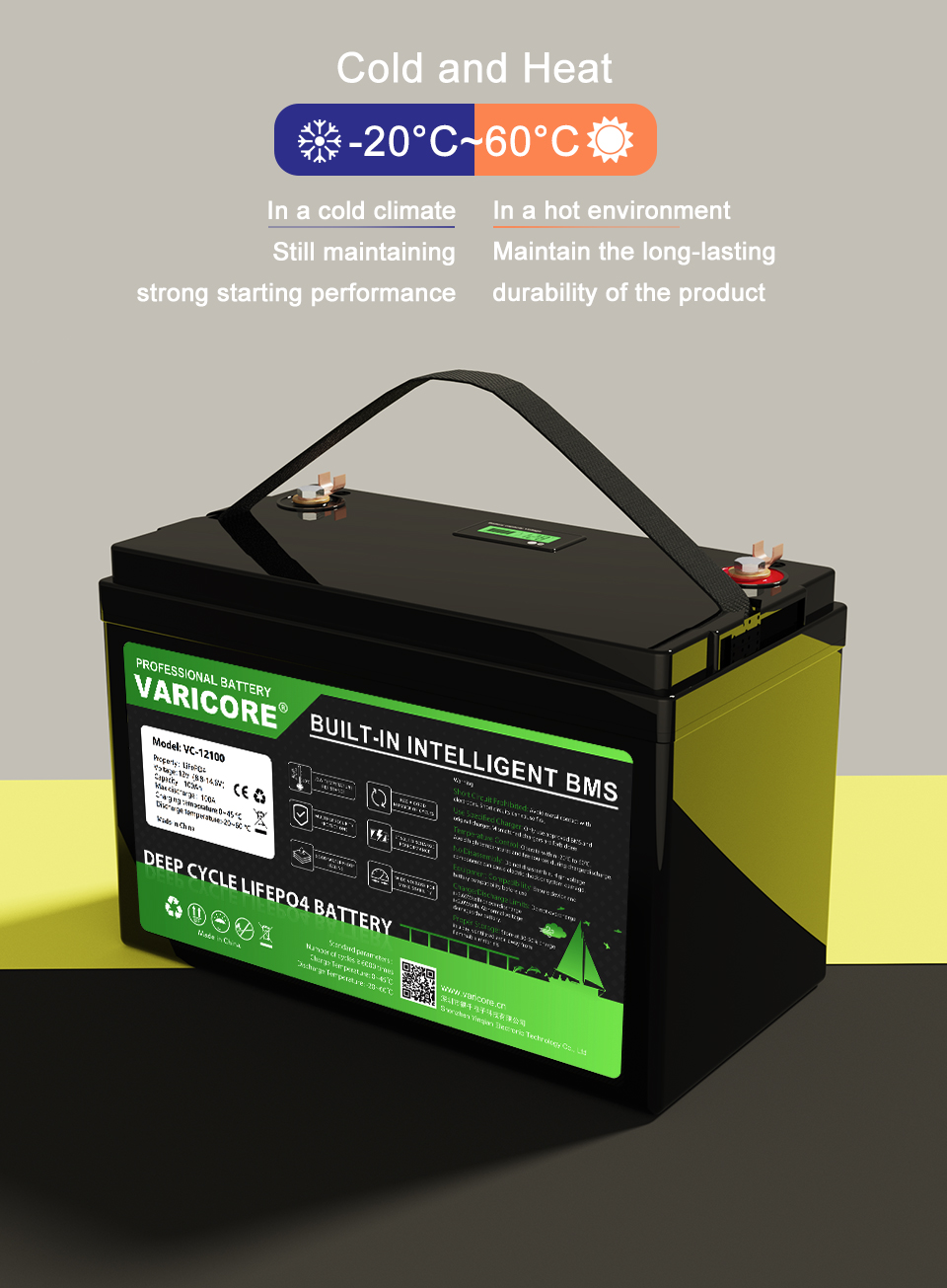

u Discharge temperature: -20~60°C

u Storage temperature: -20~65 °C

u Self-consumption current：10μA

Application of batteries:

u RV, motorcycle, solar energy, electric tower, windmill, camping, electric car, golf cart, etc.

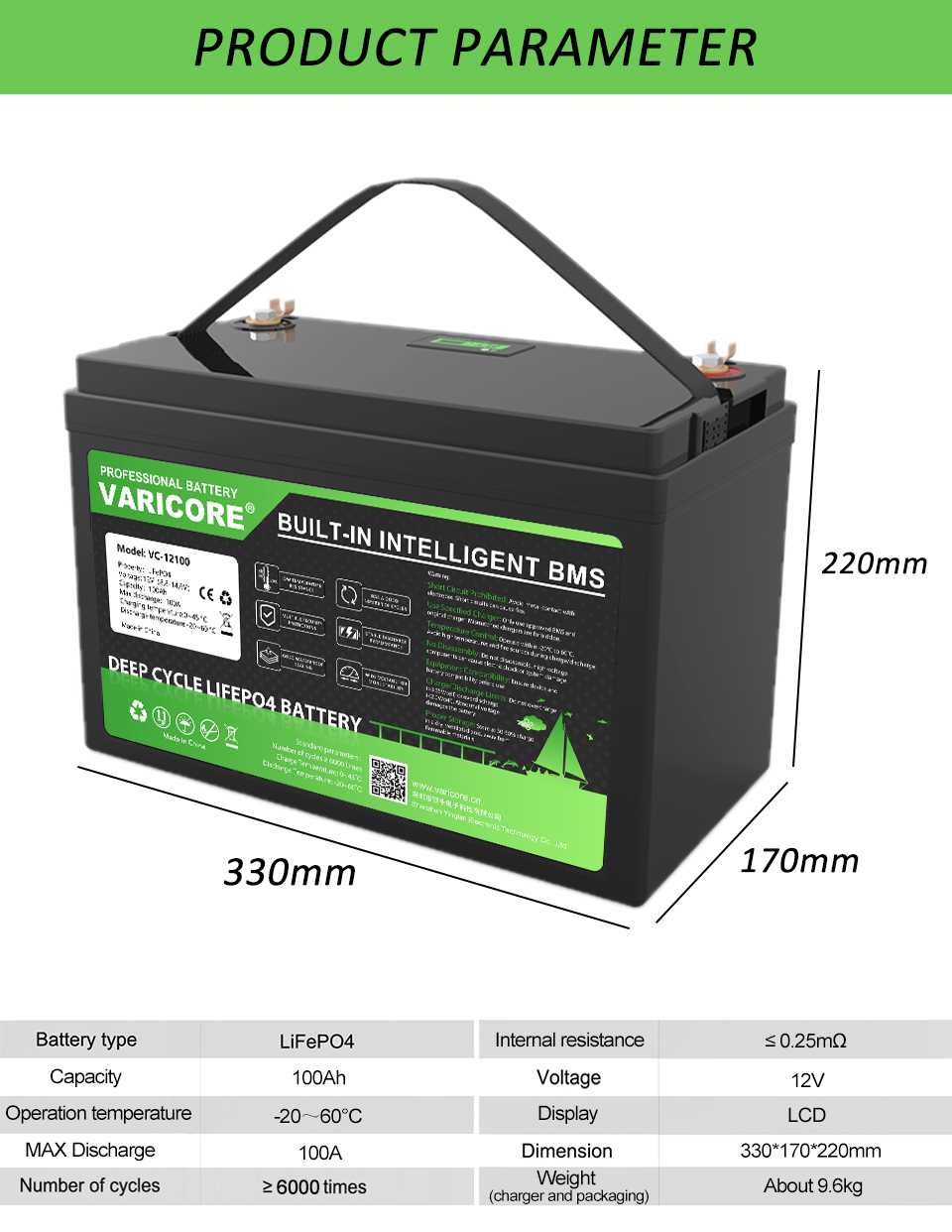

Size(mm)/Weight(grams):

u Size: Length 330mm x Width 170mm x Height 220mm

u Weight:10kg (including boxes)

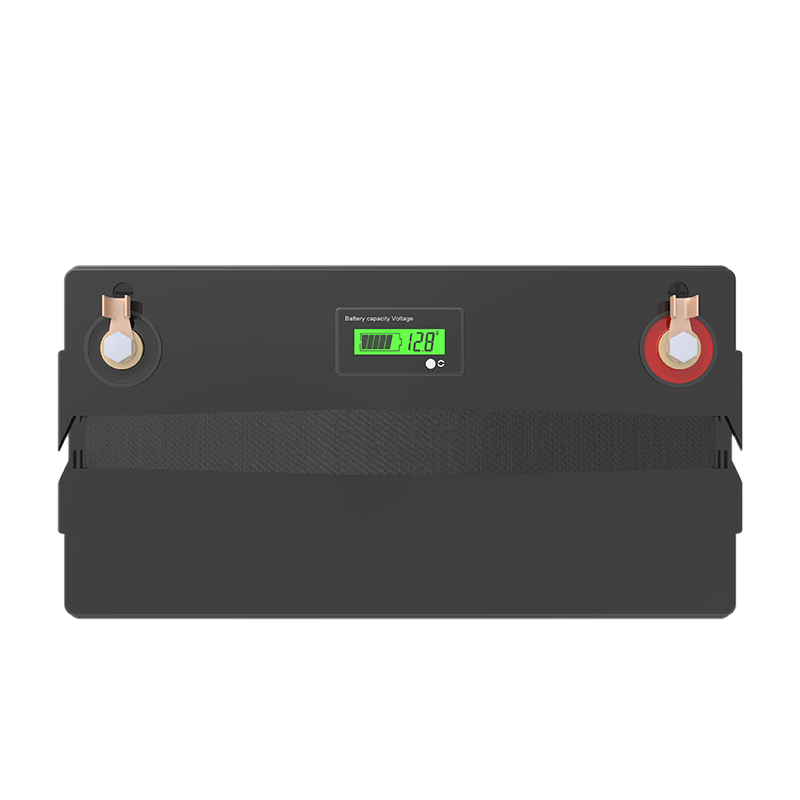

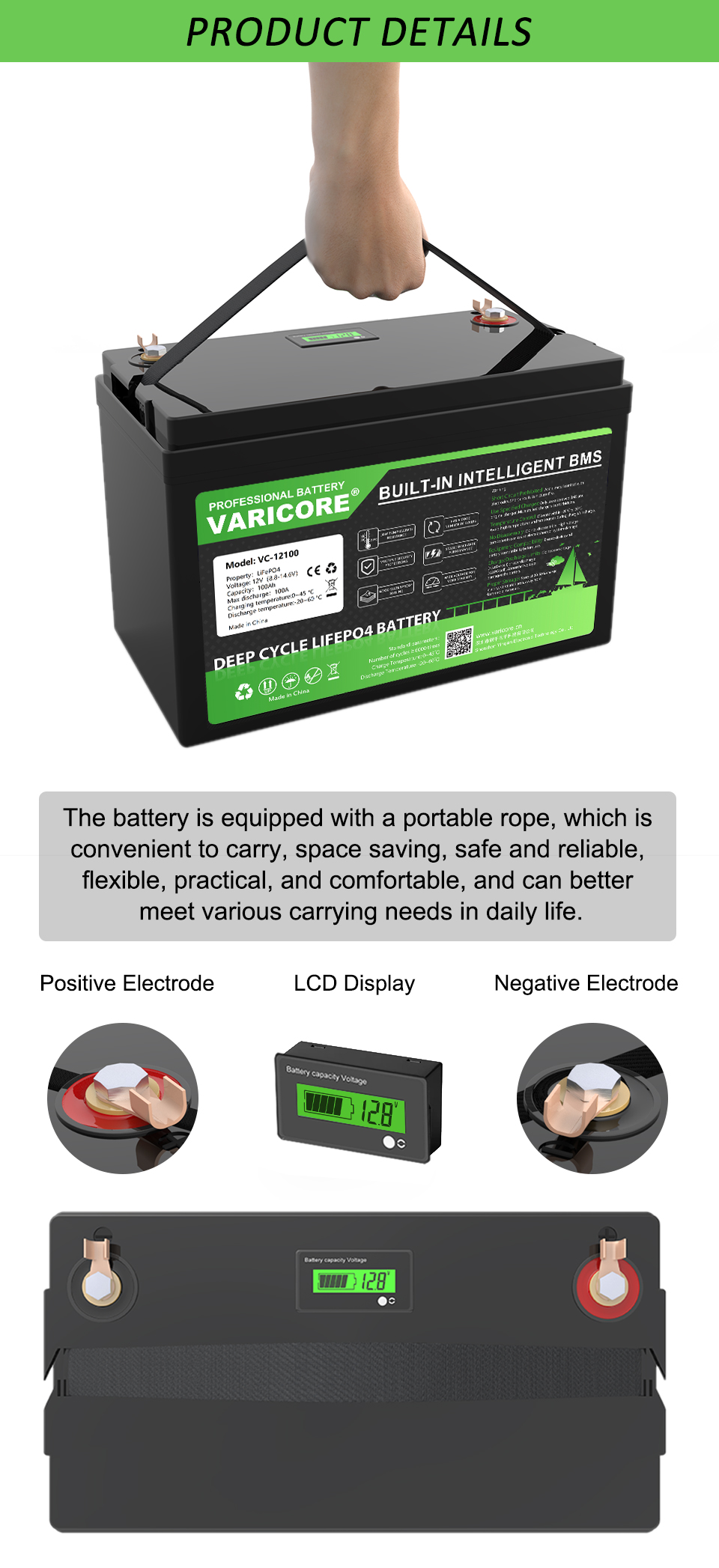

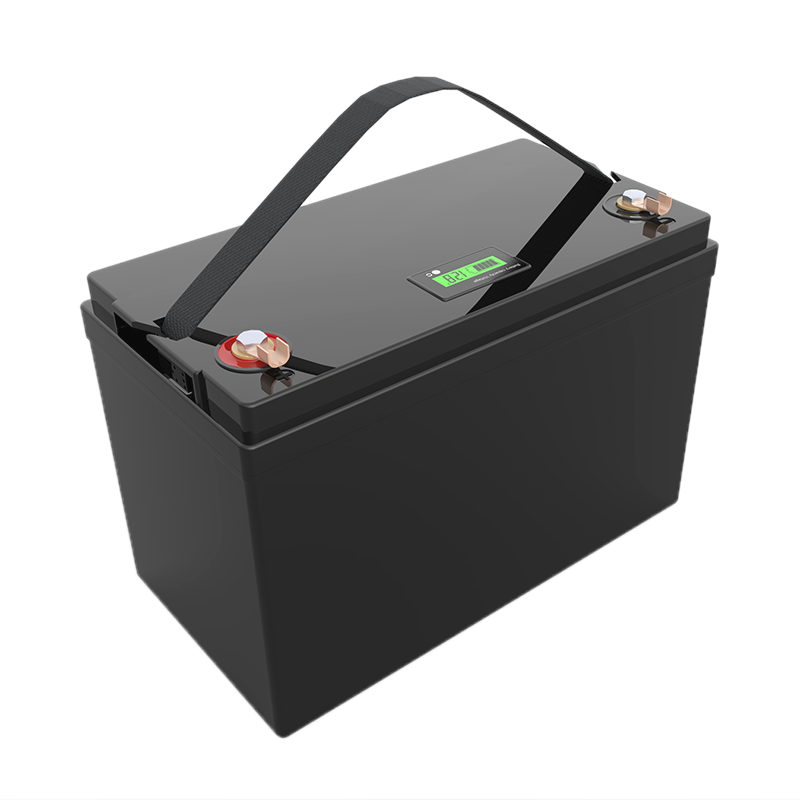

LCD Display: Yes
