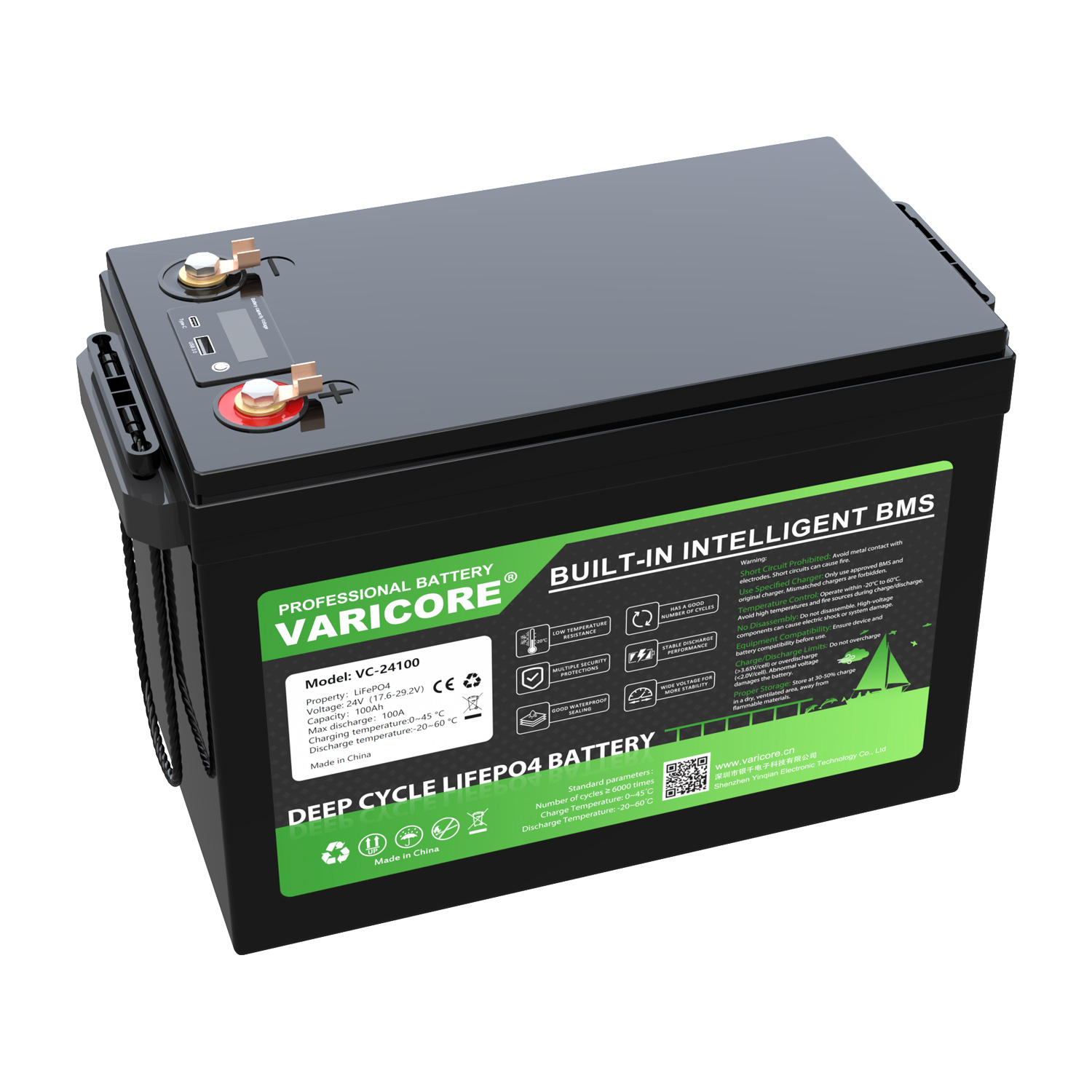

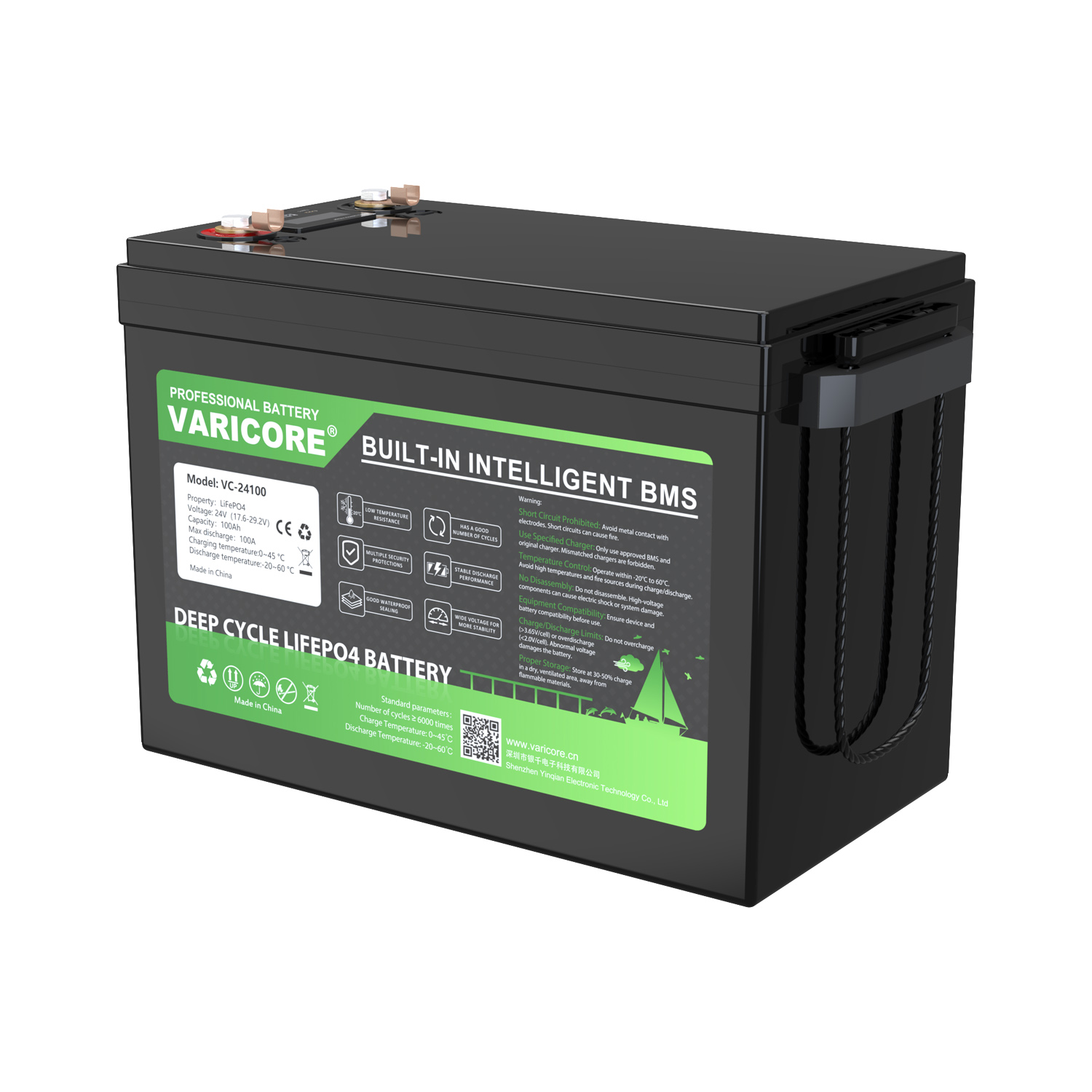

Specifications

 Voltage、Current and Temperature

u Nominal voltage: 24V

u Nominal capacity: 100Ah

u Maximum charging current:<100A

u Instantaneous discharge current:

u Discharge protection current:250A±100A

u Continuous discharge current:≤100A

u Operating voltage range:16.8 V-29.2 V

u Overcharge protection voltage: 29.6 V ±0.05 V

u Overdischarge protection voltage:16.8V ±0.05 V

u Over-discharge recovery voltage：20.8V

u Recovery condition: Disconnect the load or resume charging

u Short circuit protection delay time: 200-800mS

u Short circuit protection recovery: recovery after disconnecting the load

u Protect battery temperature:60°C ± 5°C

u Life: 6000 Cycles or more

u Charging temperature: 0~45°C

u Discharge temperature: -20~60°C

u Storage temperature: -20~65 °C

u Self-consumption current：10μA

Application of batteries:

u RV, motorcycle, solar energy, electric tower, windmill, camping, electric car, golf cart, etc.

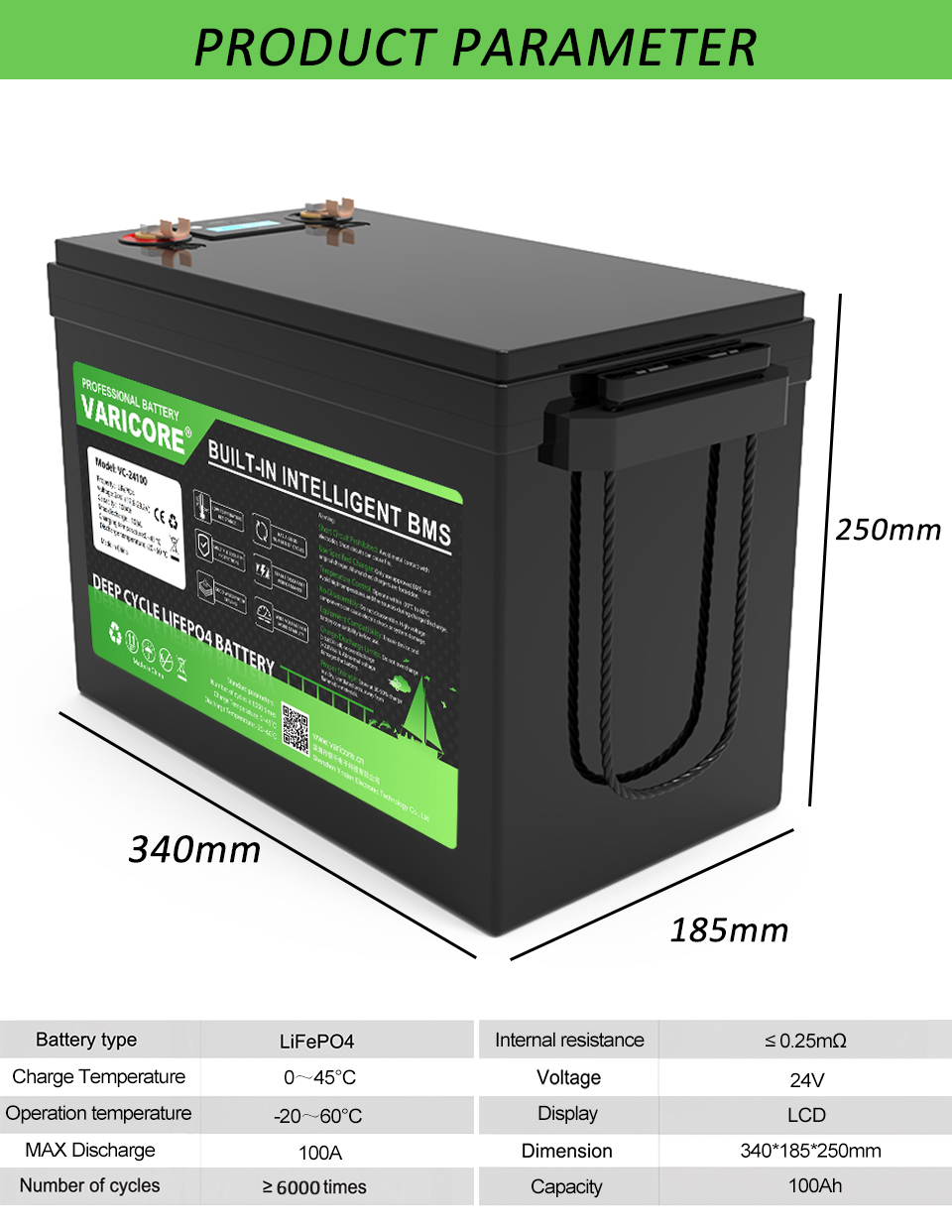

Size(mm)/Weight(grams):

u Size: Length 345mm x Width 190mm x Height 245mm

u Weight:20kg (including boxes)

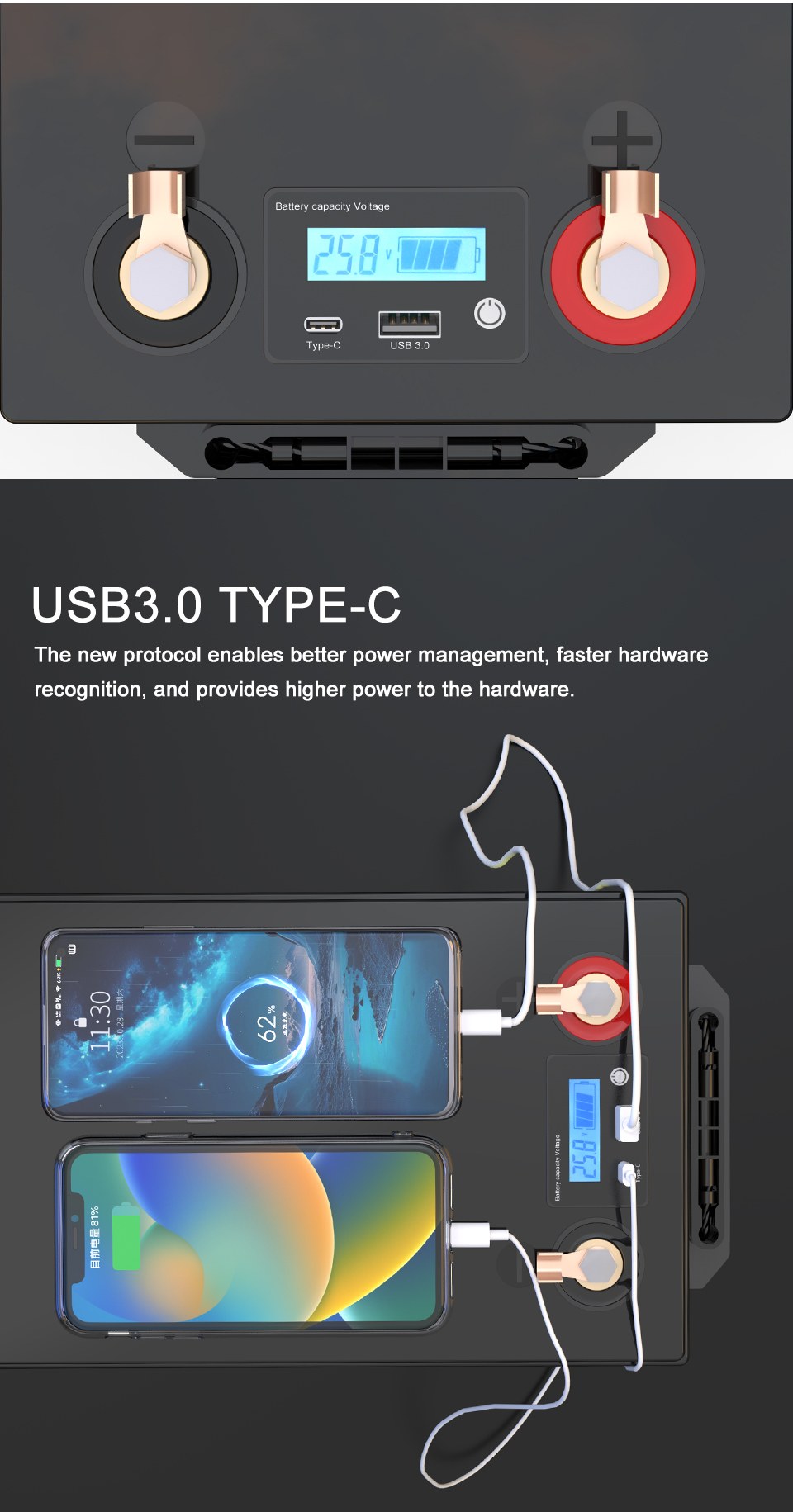

USB output:

u QC3.0 18W (5V/2A、9V/2A、12V/1.5A)

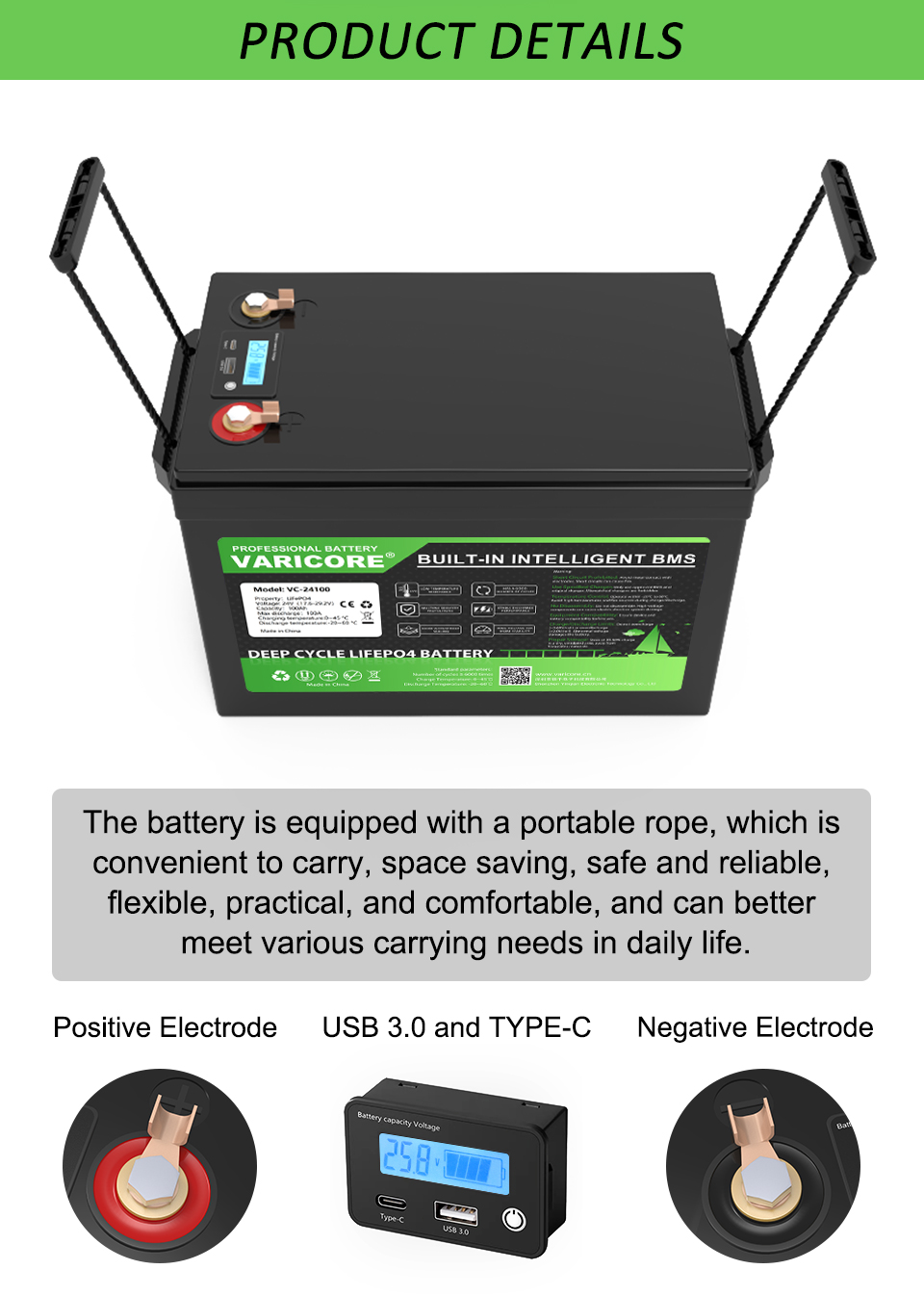

LCD Display: Yes
