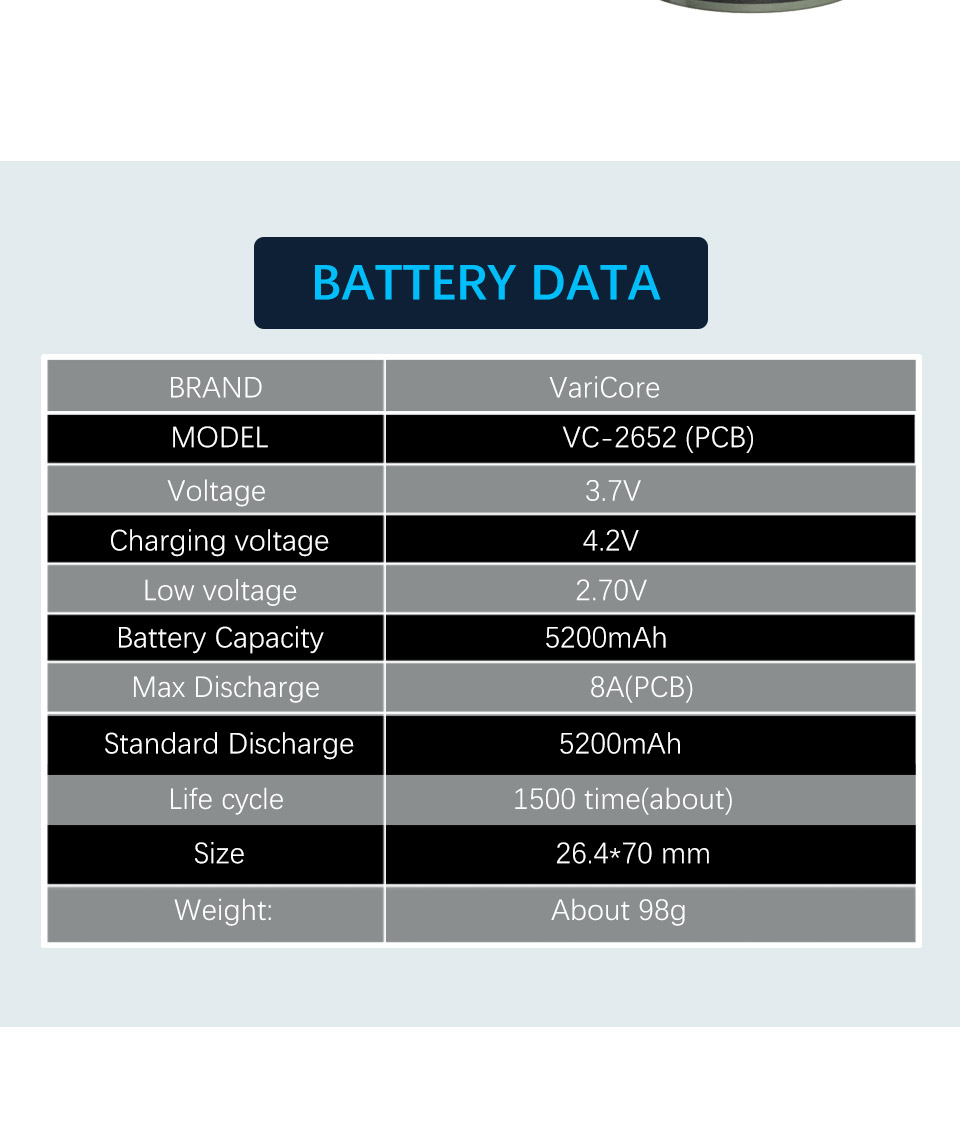

Specifications

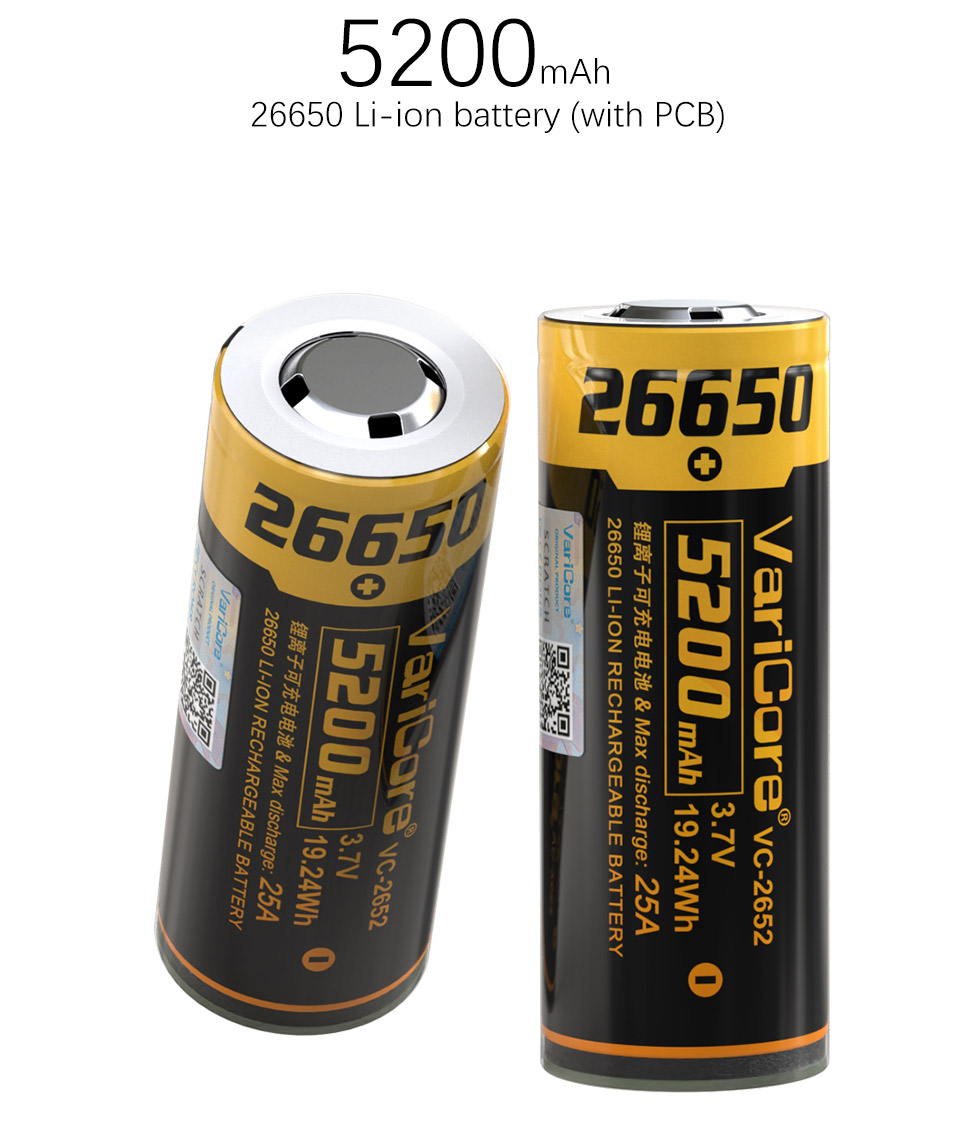

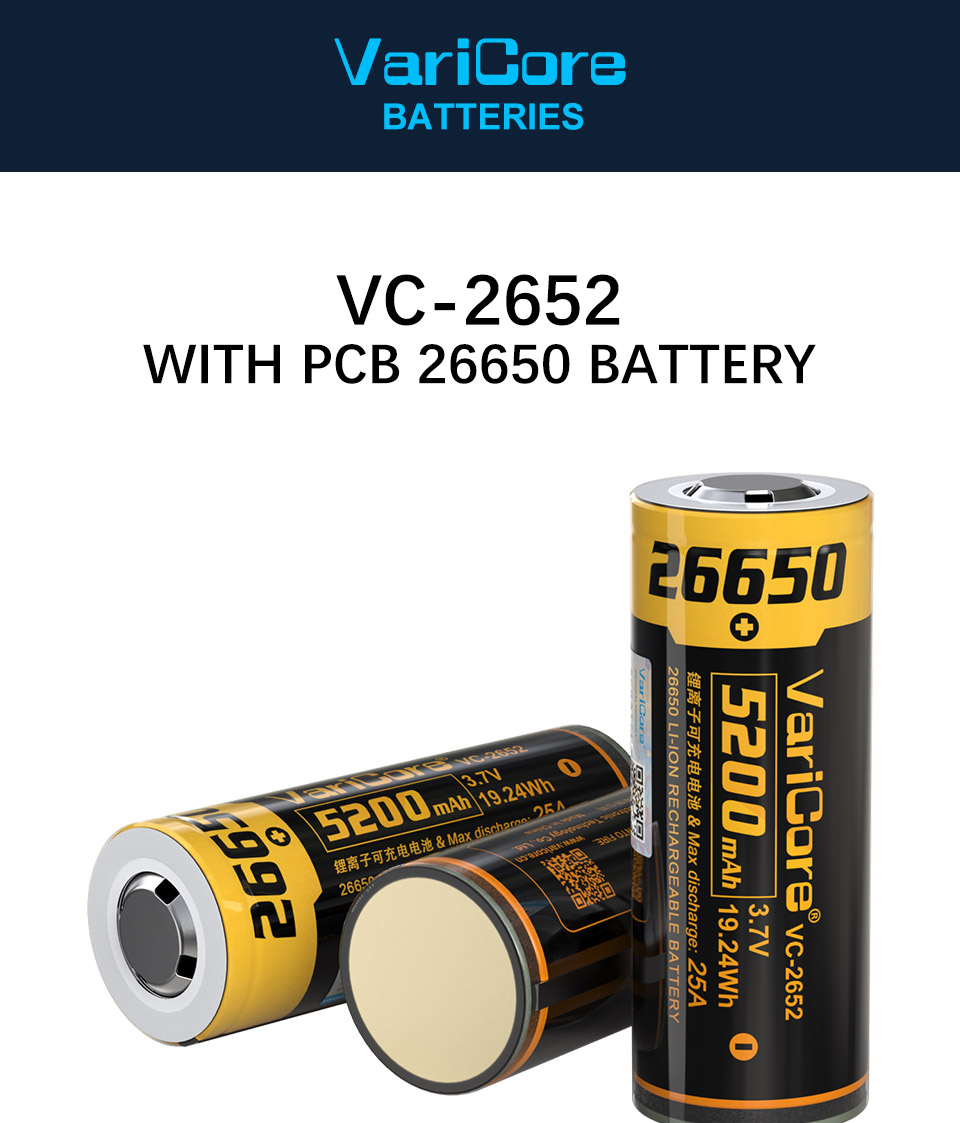

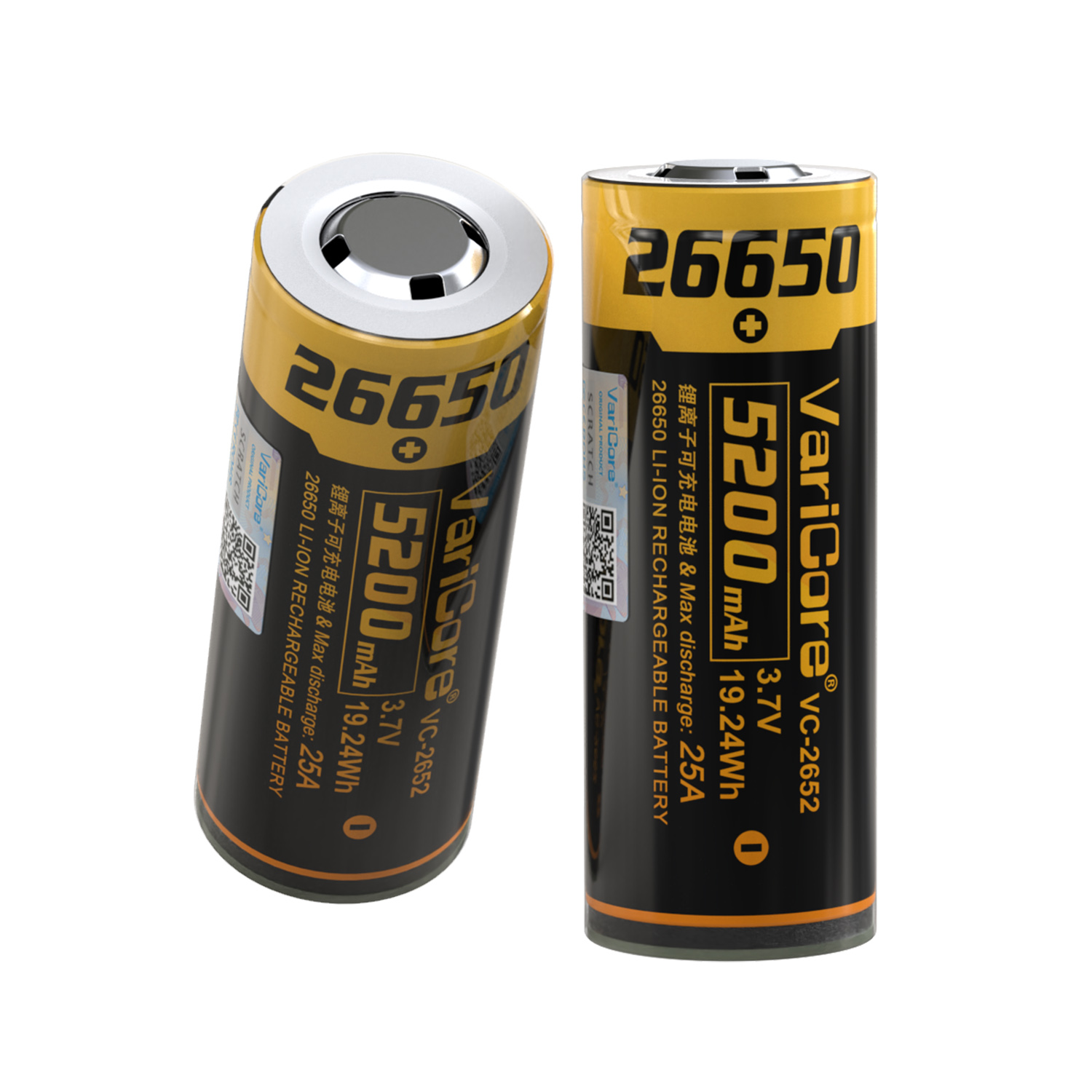

Model:VC-2652 PCB

Nominal voltage: 3.7V

Nominal capacity: 5200mAh

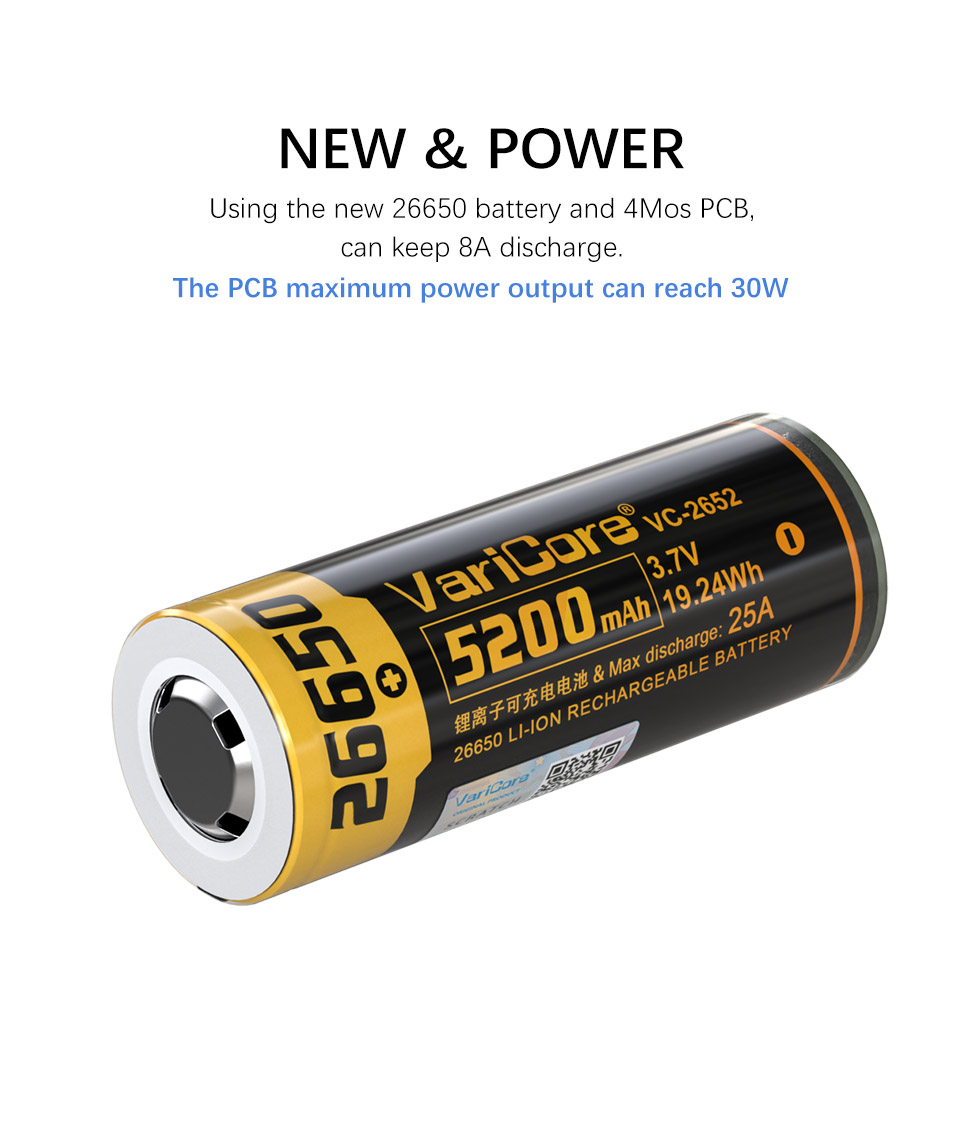

Continuous discharge current:8A

Operating voltage range:2.75V-4.2 V

Overcharge protection voltage: 4.2 V

Overdischarge protection voltage:2.75V

Over-discharge recovery voltage：2.75V

USB output:Not

Life: 1200

Charging temperature: 0~45°C

Discharge temperature: -20~60°C

Storage temperature: 0~45 °C



Size(mm)/Weight(grams):

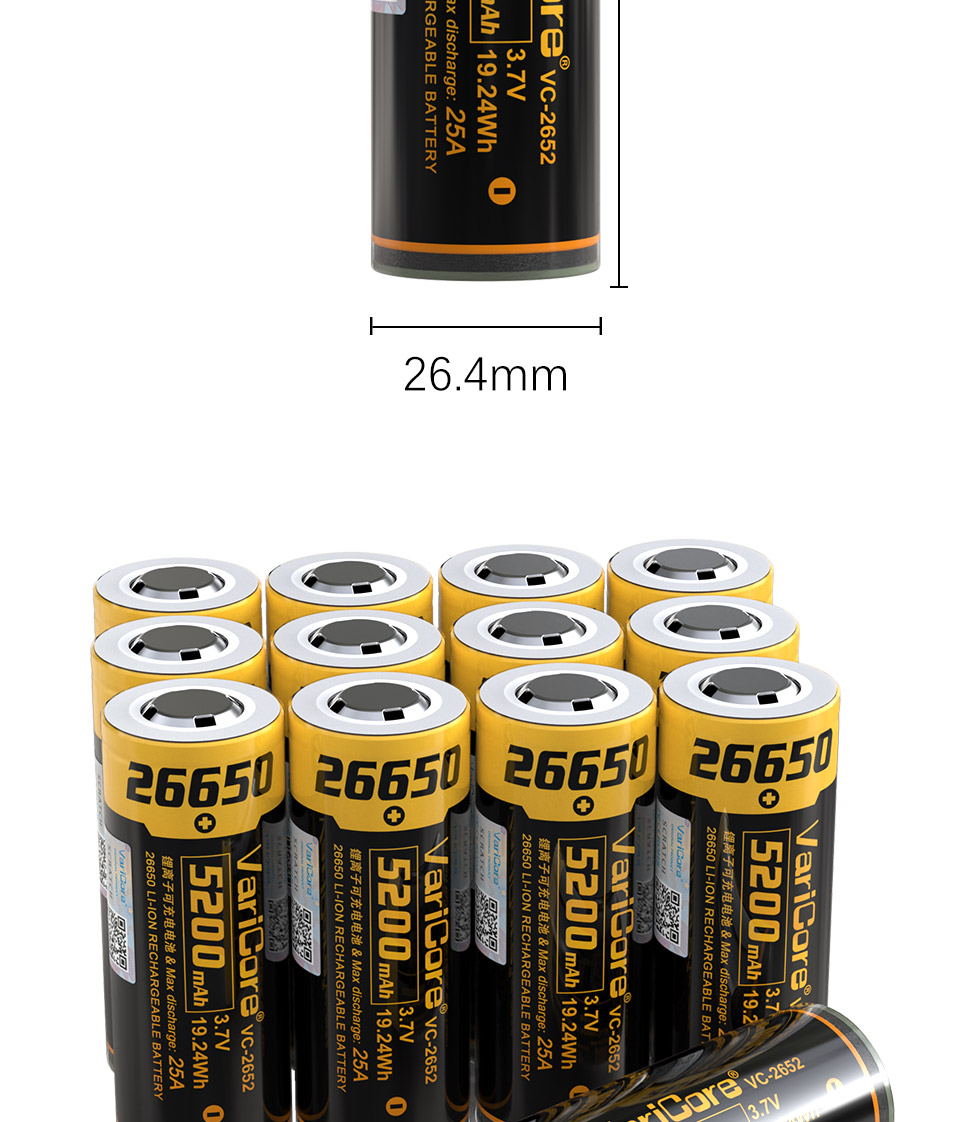

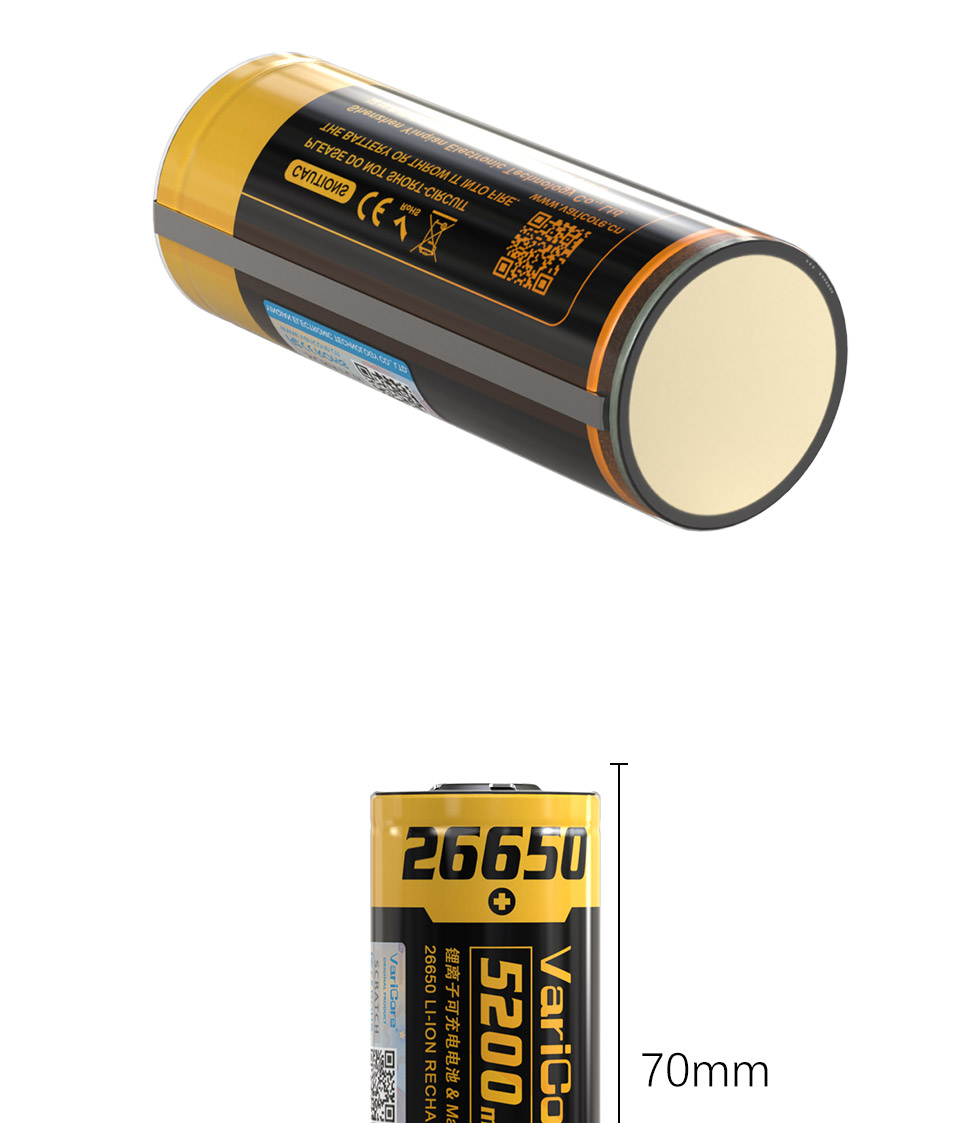

Size: Length 26.5mm x Width 26.5mm x Height 70mm

Weight:About 98g
