Specifications



Voltage、Current and Temperature

Nominal voltage: 12V

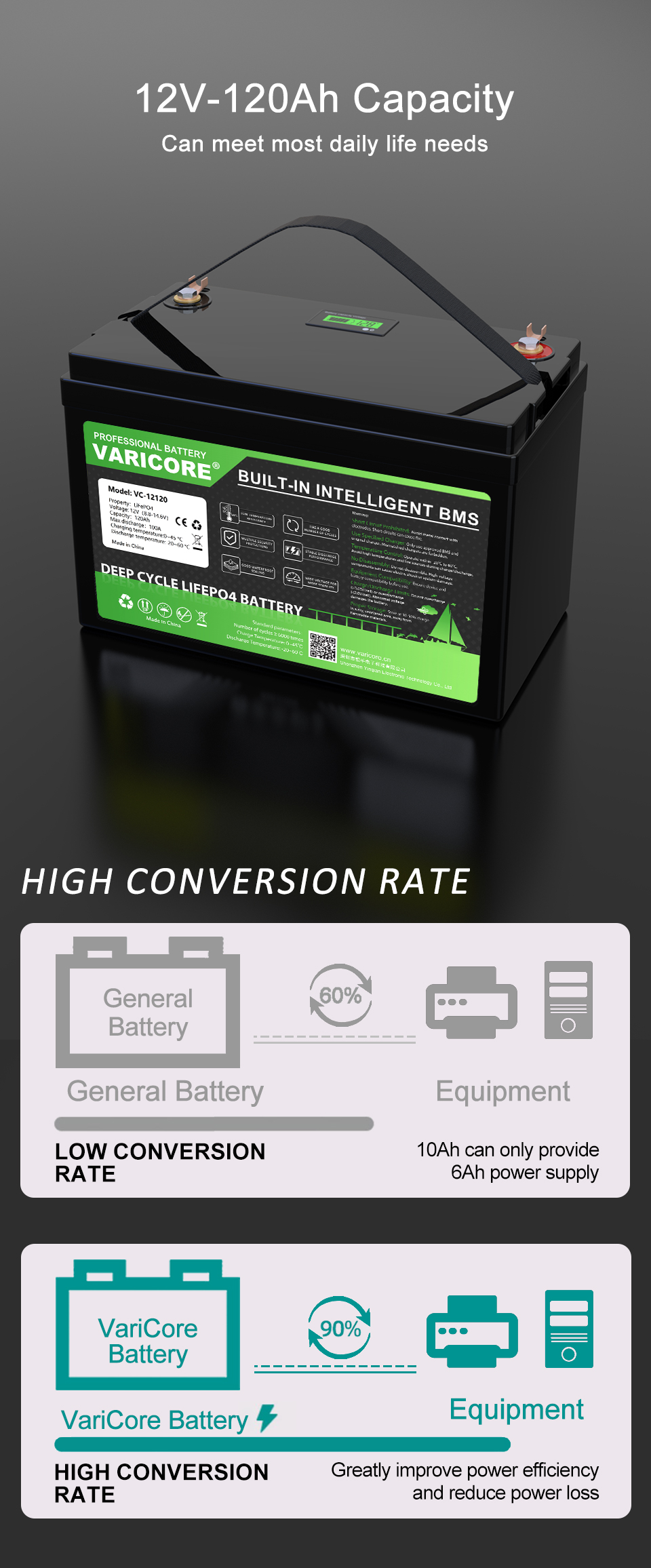

Nominal capacity: 120Ah

Maximum charging current:<100A

Recommended charging current: <50A

Discharge protection current:

Continuous discharge current:≤100A

Operating voltage range:8.4V-14.6 V

Overcharge protection voltage: 14.6V ±0.05 V

Overdischarge protection voltage:2.1V ±0.05 V（single cell）

Over-discharge recovery voltage：2.6V ±0.05 V（single cell）

Protect battery temperature:60°C ± 5°C

Life: 6000 Cycles or more

Charging temperature: 0~45°C

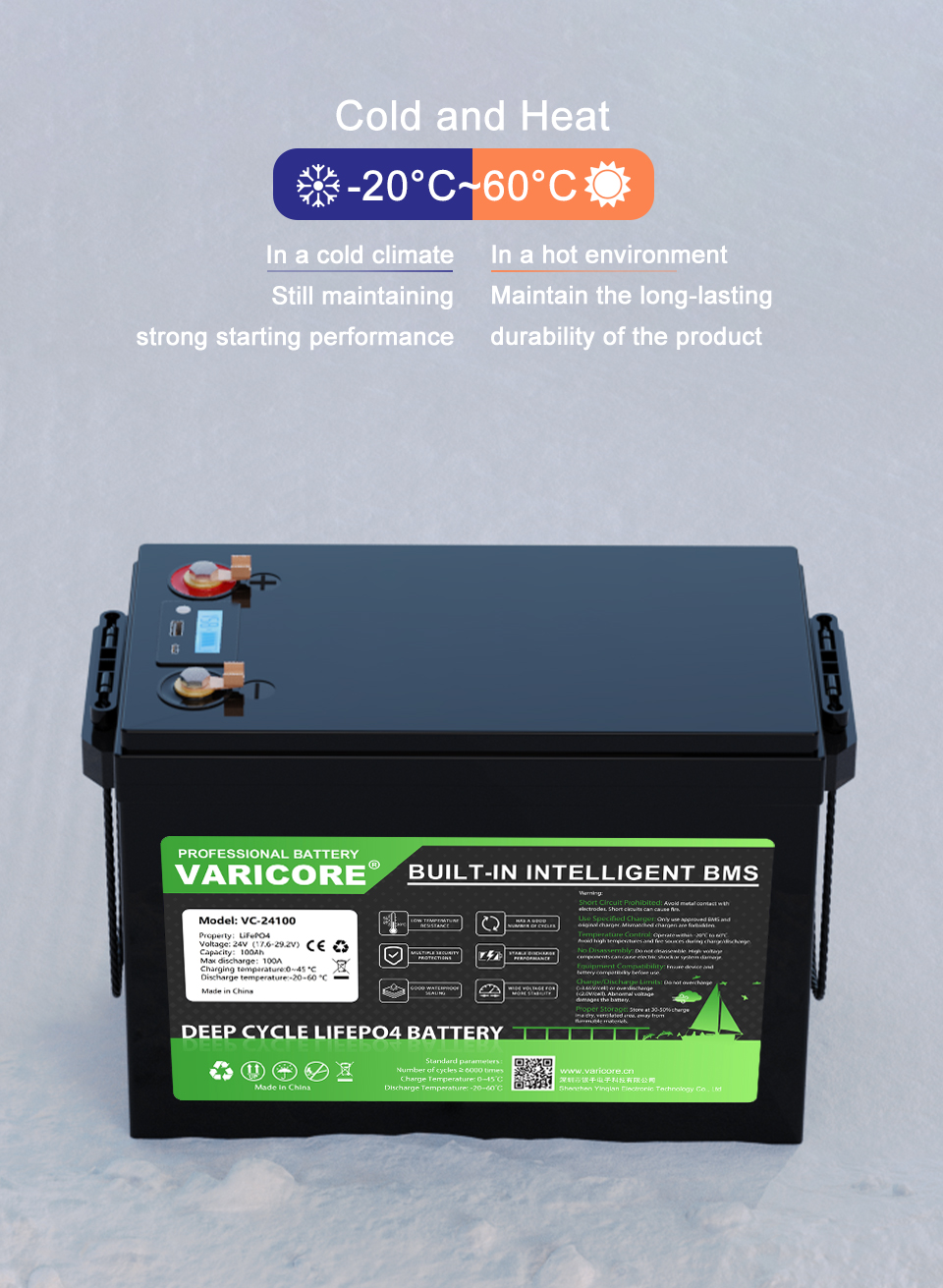

Discharge temperature: -20~60°C

Storage temperature: -20~65 °C

Self-consumption current：10μA

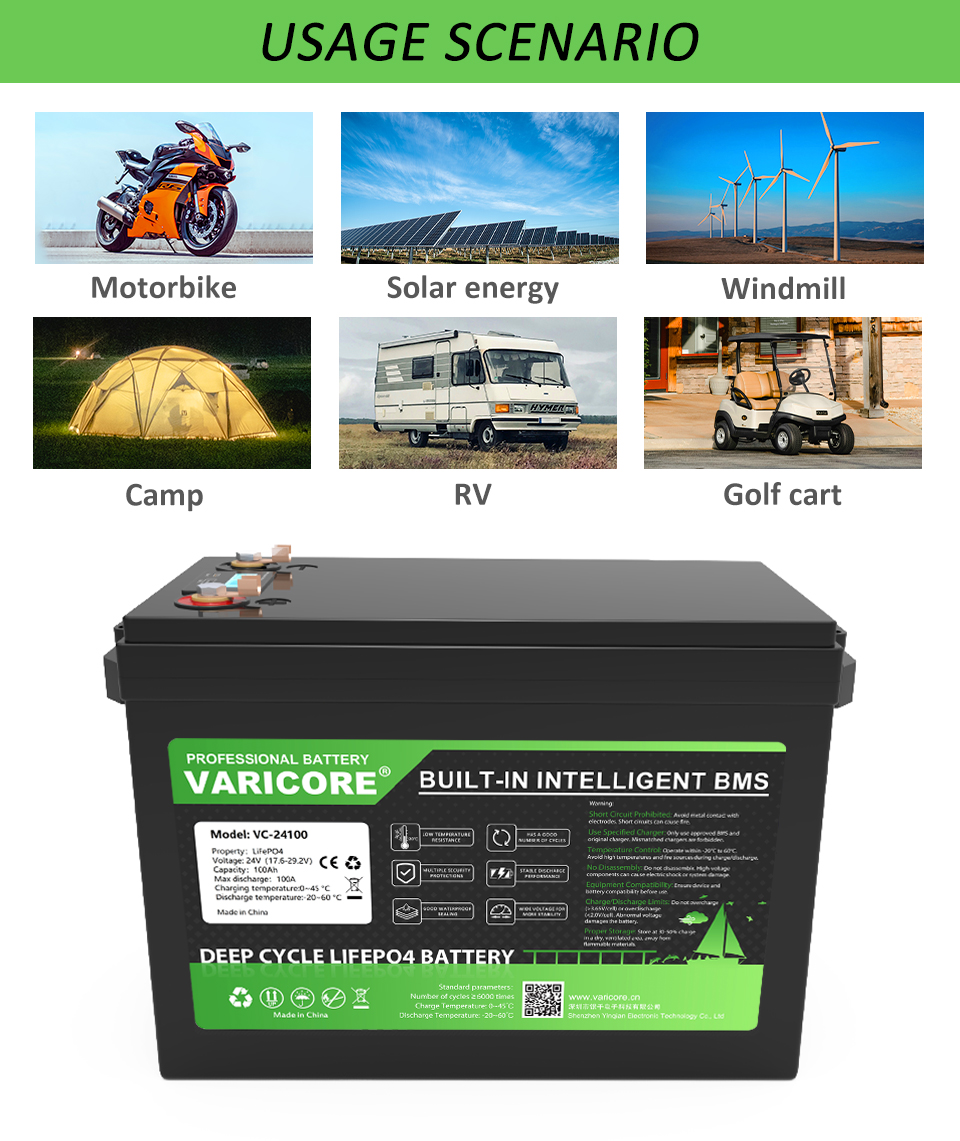

Application of batteries:

RV, motorcycle, solar energy, electric tower, windmill, camping, electric car, golf cart, etc.

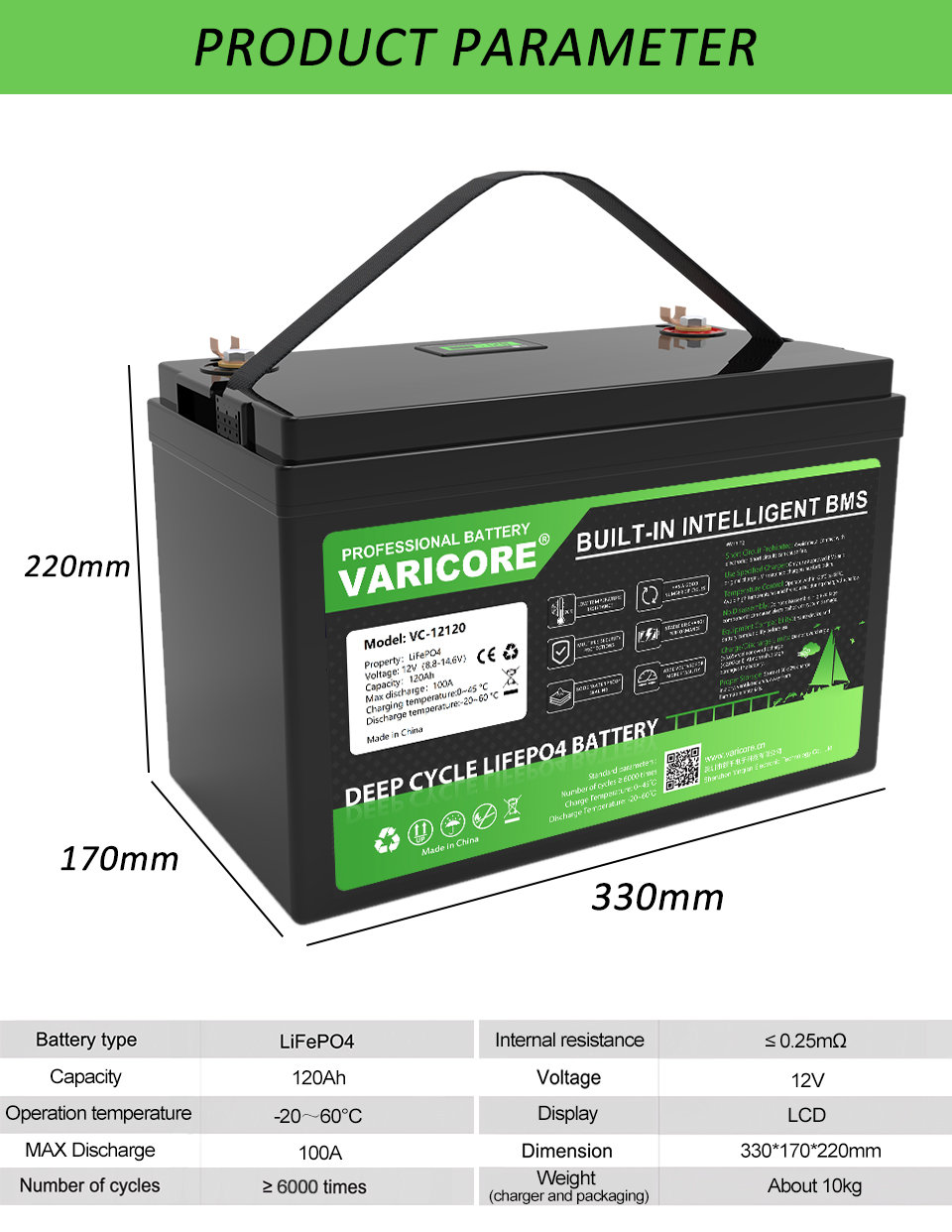

Size(mm)/Weight(grams):

Size: Length 330mm x Width 170mm x Height 220mm

Weight:About 10kg (including boxes)

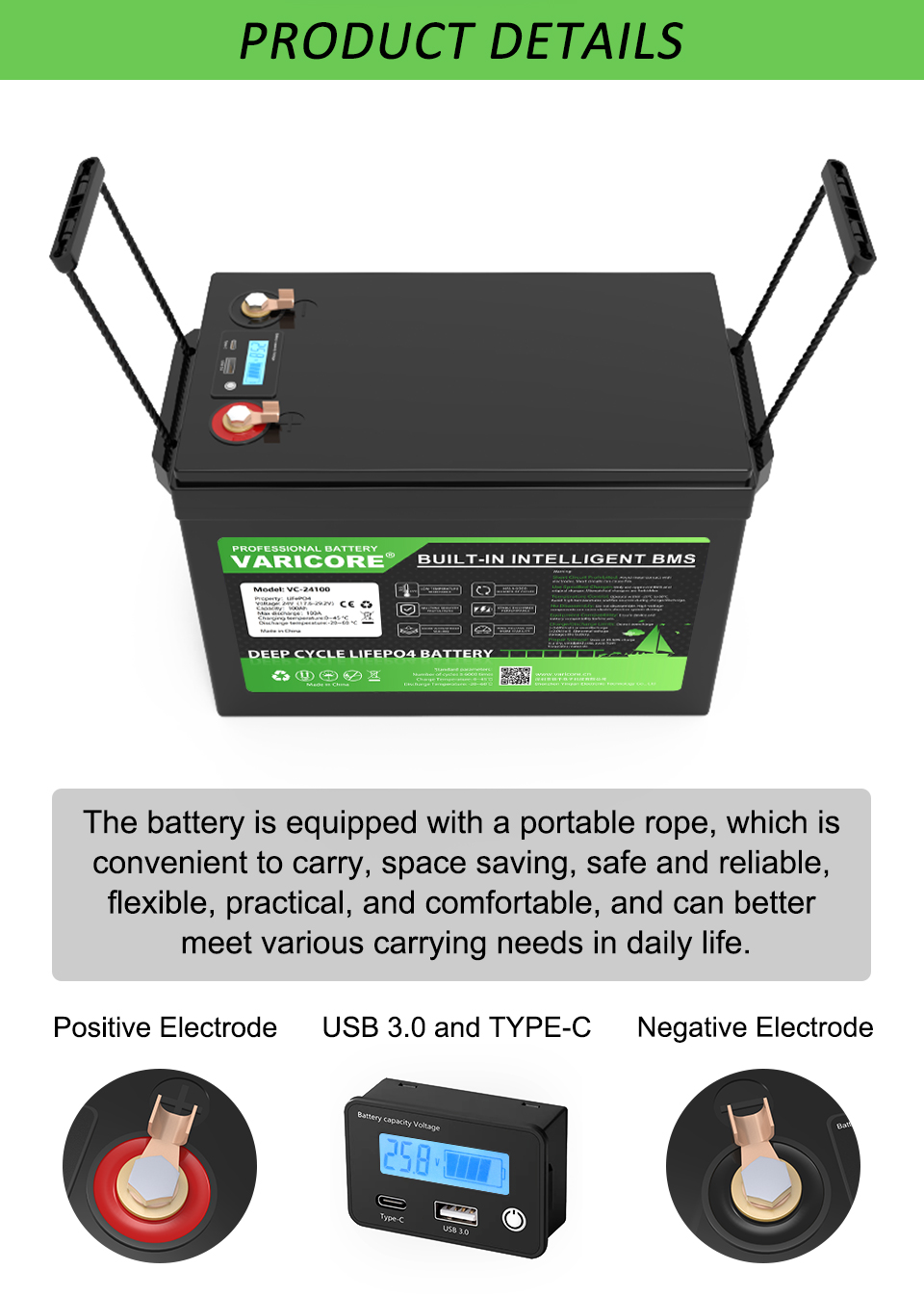

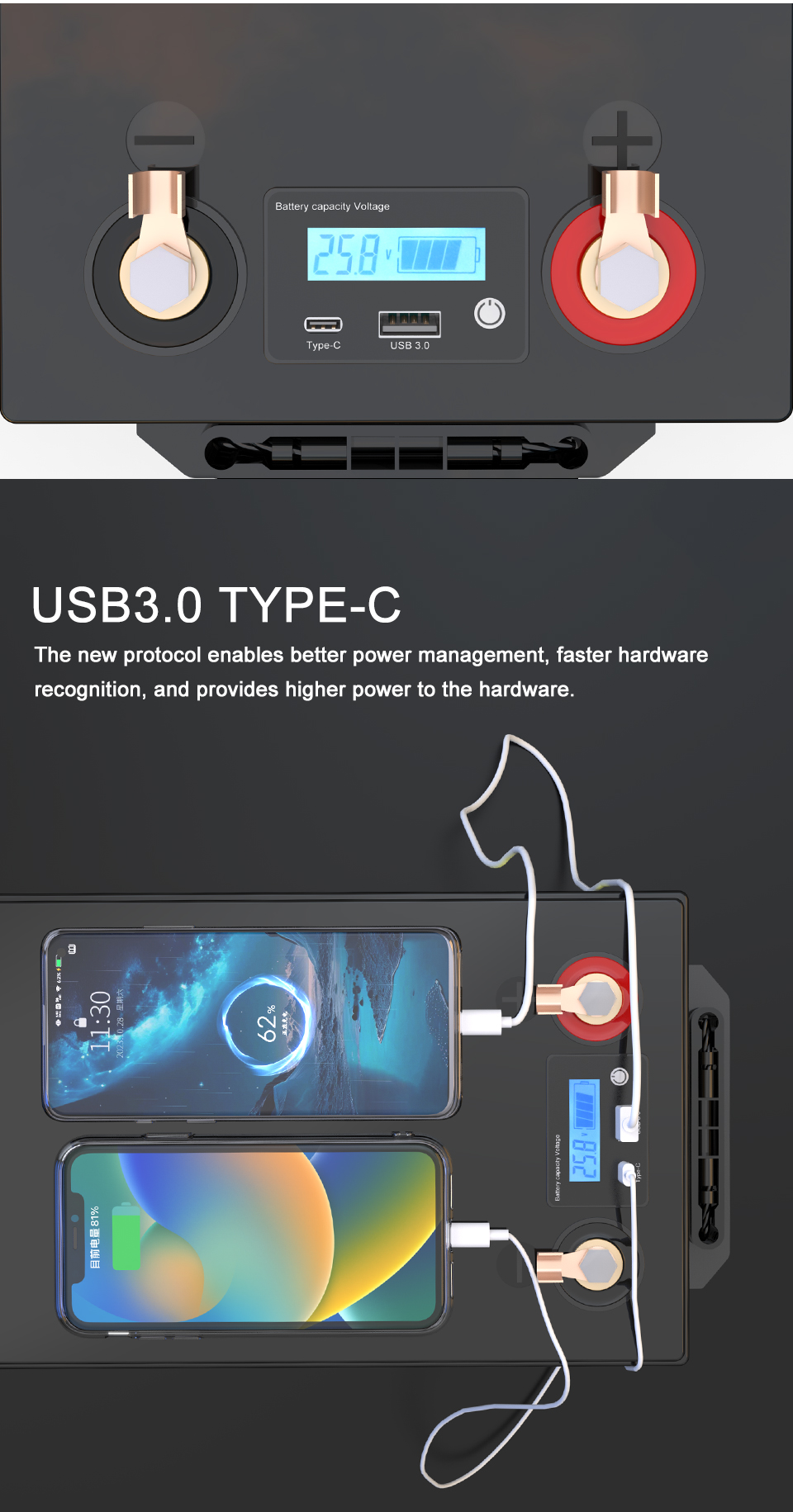

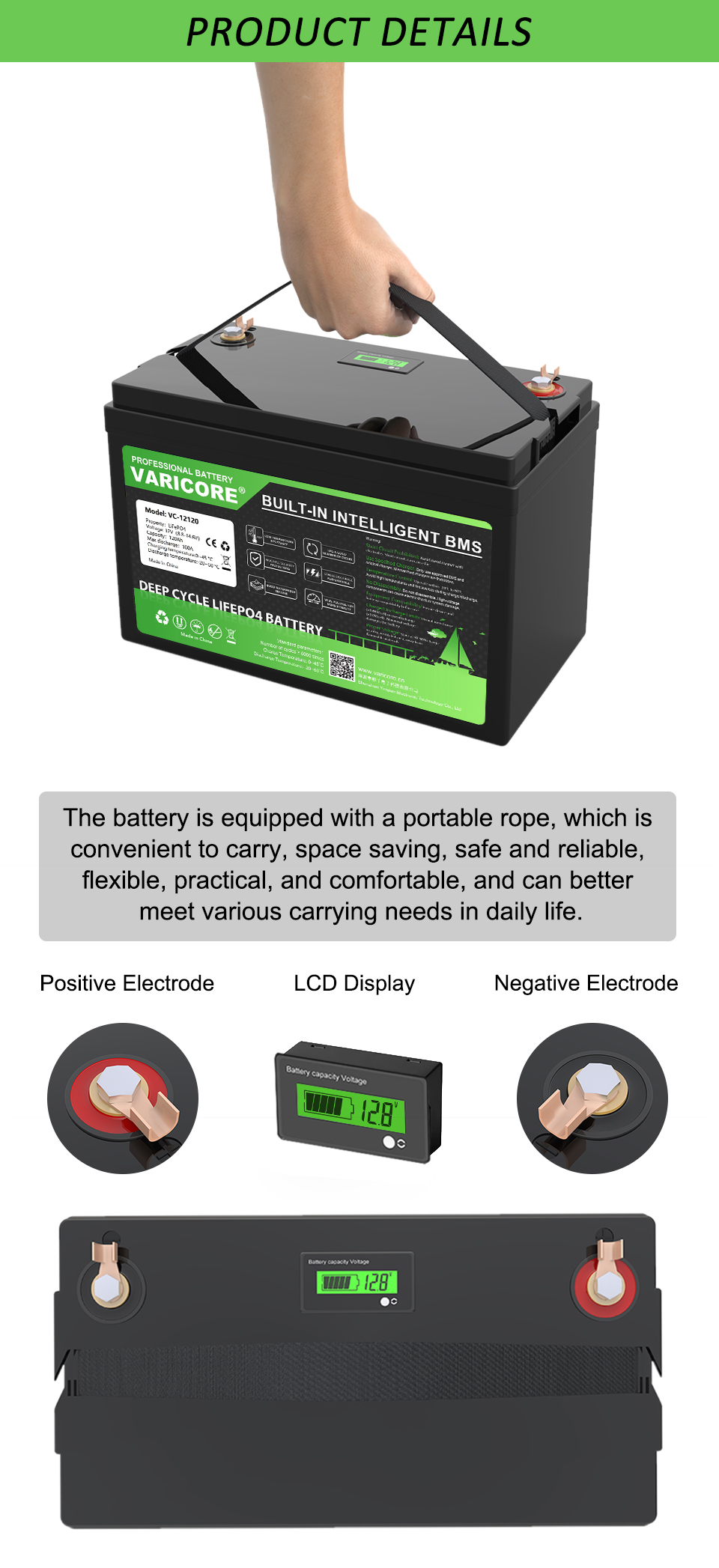

LCD Display: Yes
