Specifications



Voltage、Current and Temperature

Nominal voltage: 24V

Nominal capacity: 300Ah

Maximum charging current:<100A

Recommended charging current: <50A

Discharge protection current:800A

Continuous discharge current:≤200A

Operating voltage range:20 V-29.2 V

Overcharge protection voltage: 29.2 V ±0.05 V

Overdischarge protection voltage:2.1V ±0.05 V（single cell）

Over-discharge recovery voltage：2.6V ±0.05 V（single cell）

Protect battery temperature:60°C ± 5°C

Life: 4000 Cycles or more

Charging temperature: 0~45°C

Discharge temperature: -20~60°C

Storage temperature: -20~65 °C

Self-consumption current：10μA

Application of batteries:

RV, motorcycle, solar energy, electric tower, windmill, camping, electric car, golf cart, etc.

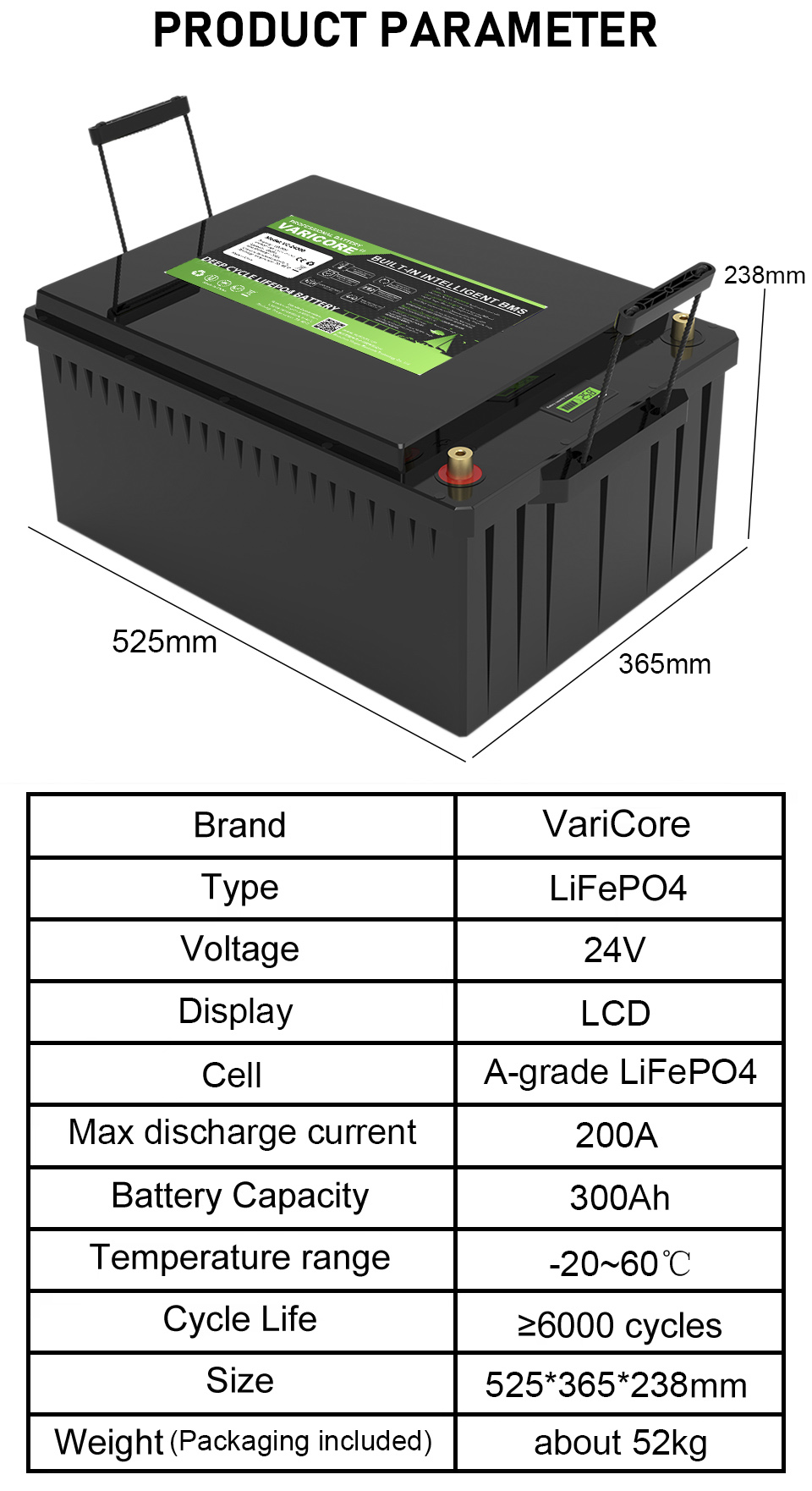

Size(mm)/Weight(grams):

Size: Length 525mm x Width 365mm x Height 238mm

Weight:About 52kg (including boxes)

LCD Display: Yes



USB output:

QC3.0 18W (5V/2A、9V/2A、12V/1.5A)
